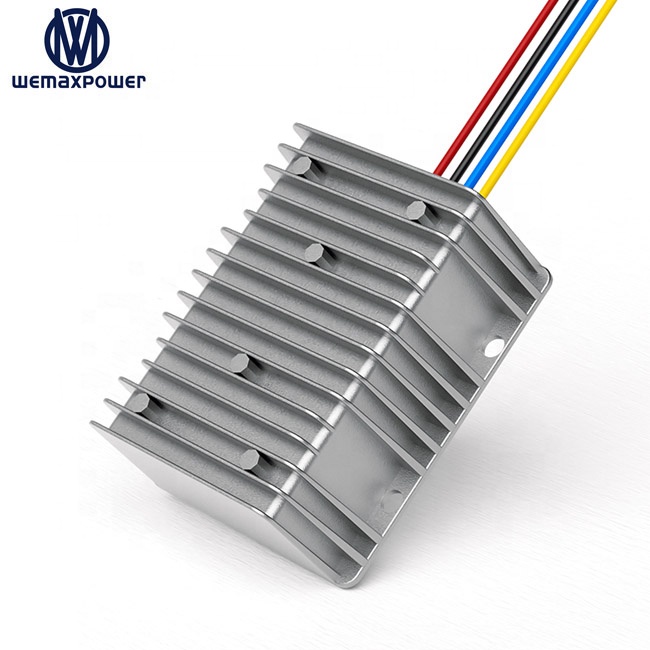

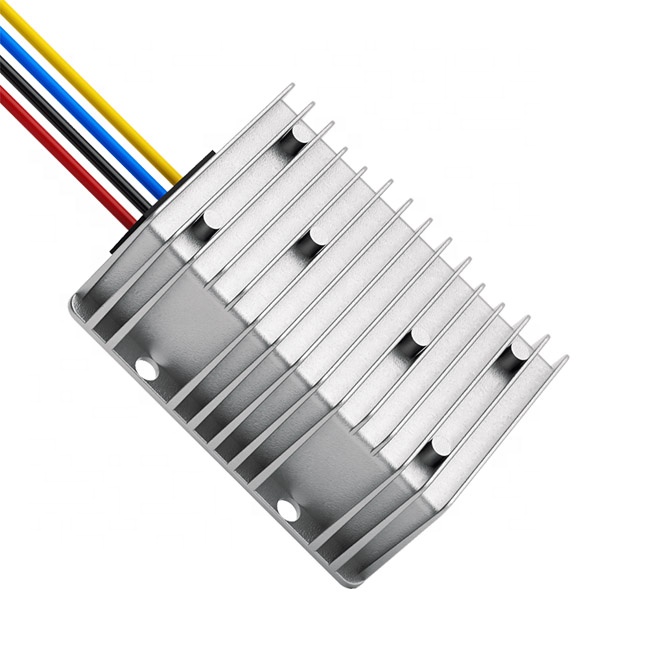

High Efficiency 36vdc 48vdc Step Down 24vdc 10a Isolation Module Dc Voltage Regulator 36v 48v to 24v 10a Isolated Converter

Product Description

High efficiency 36vdc 48vdc step down 24vdc 10a isolation module dc voltage regulator 36v 48v to 24v 10a isolated converter
High Efficiency 36vdc 48vdc Step Down 24vdc 10a Isolation Module
Similar Products
Similar Products Showcase
30~60v to 24v isolated dc converter
Features Divider

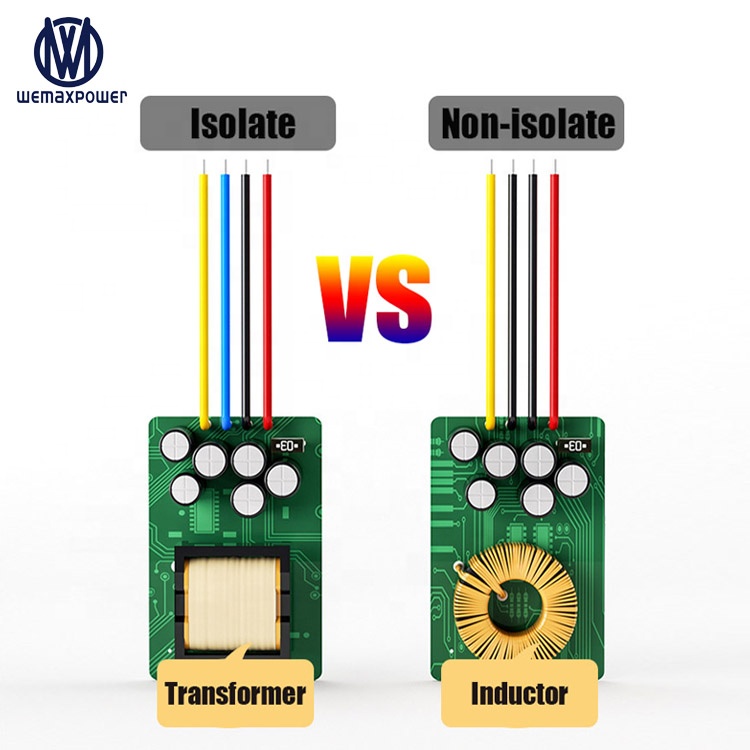

The input & output electrical appliances are completely isolated.
No high voltage direct output.
Positive and negative PSU can also be used.
Intelligent overload protection.
Prevent burning expensive load equipment.
Die-cast plastic shell for more efficient heat dissipation.
Suitable for ambient temperature -20~80°C.
Epoxy resin glue filling, IP67 protection grade, waterproof, anti shock, moisture-proof, dust-proof.

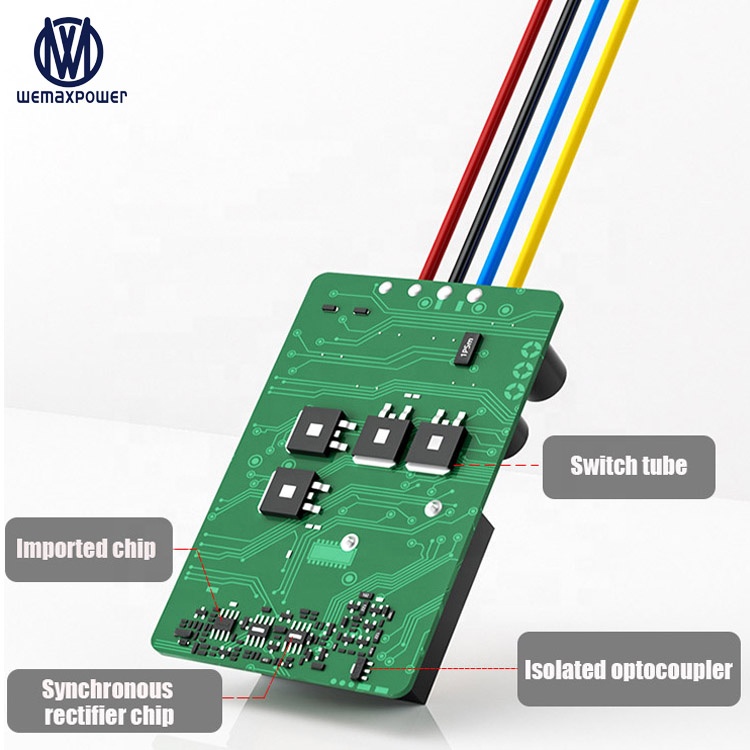

Industrial grade PSU chip, safe and reliable.
Specification Divider
Series No. WMX-D30-60D24
Model WMX-DSD30-60S2410
Product Name 36v/48v to 24v isolated converter
Input rated voltage 36/48Vdc
Input voltage range 30-60Vdc
Conversion Efficiency 96%
Output voltage 24Vdc
Output current 10Amps
Output rated power 240Watts
Voltage regulation < 1%
Load regulation < 2%
Ripple (full load test) < 150mV
No-load current < 20mA
Working Temperature -40°c ~ +80°c
Waterproof rating IP67
Protections Over-load, Over-current, Over-temperature, Over-voltage
Machine size 100*80*39mm
N. Weight 490g
Type Input & output Isolation
Packing Standard box
Product Description
Description Divider
Detail Divider FAQ Divider
Frequently Asked Questions
QHow do we work?
Since 2009, our factory has provided various power solutions for different projects worldwide, including DC to DC, AC to DC, DC to AC, and AC to AC power supplies. We are committed to providing high-quality, high-performance, and cost-effective options to meet the power conversion needs of our customers.
QWhat kind of products can you buy from us?
DC-DC Converter, DC-DC Charger, Voltage regulator, Adjustable Power Supply, Power Inverter, Battery Charger, AC DC Converter, Switching Power Supply.
QHow do you ensure your product and service quality?
All our processes strictly adhere to ISO-9001 procedures. We provide a 12-month quality warranty from the delivery date. If the product does not work properly as described and the problem is proven to be caused by our factory, we will provide exchange services for the same specific item. Also, our staff will always be there for you if anything is needed.
QDo you provide custom services based on specific requirements?
Yes, we can provide bespoke services to customers with specific requirements. You can send your detailed requirements by email, and we will check if we can develop them. We develop new models every month, and some may not yet be updated on our website. Alternatively, you can send us samples, and we can develop new models specifically for you.
QCan I buy 1 or 2 pieces of samples for testing before placing bulk orders?
Yes, we are pleased to send you samples to test the quality and performance. We are confident that once you have them in hand, you will be highly satisfied. With our excellent service and competitive pricing, we believe we will be the ideal choice for your power supply solutions.
QWhat is your Minimum Order Quantity (MOQ)?
Different products have different MOQs. Generally speaking, our MOQ is 1 piece. Please feel free to check with us for specific items.
