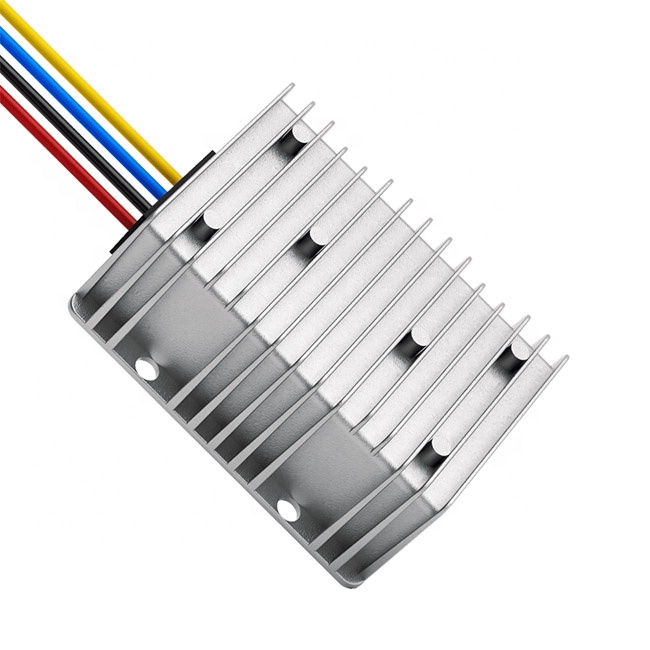

High Efficiency 24a 80v 90v 100v 120v to 5v Dc Isolated Converter 75v-150v Step Down 5v 24amp Dc Voltage Regulator

Product Description

High efficiency 24a 80v 90v 100v 120v to 5v dc isolated converter 75v-150v step down 5v 24amp dc voltage regulator

High Efficiency 24a 80v 90v 100v 120v to 5v Dc Isolated Converter 75v-150v Step Down 5v 24amp Dc Voltage Regulator
Similar Products
Similar Products

75~150v to 5v isolated dc converter

Divider

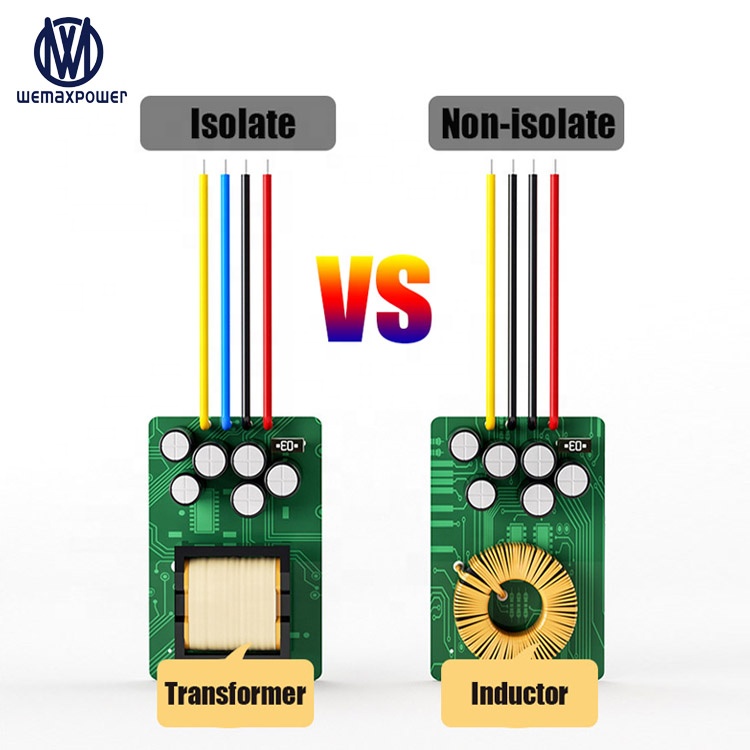

The input & output electrical appliances are completely isolated.
No high voltage direct output.
Positive and negative PSU can also be used.
Intelligent overload protection.
Prevent burning expensive load equipment.

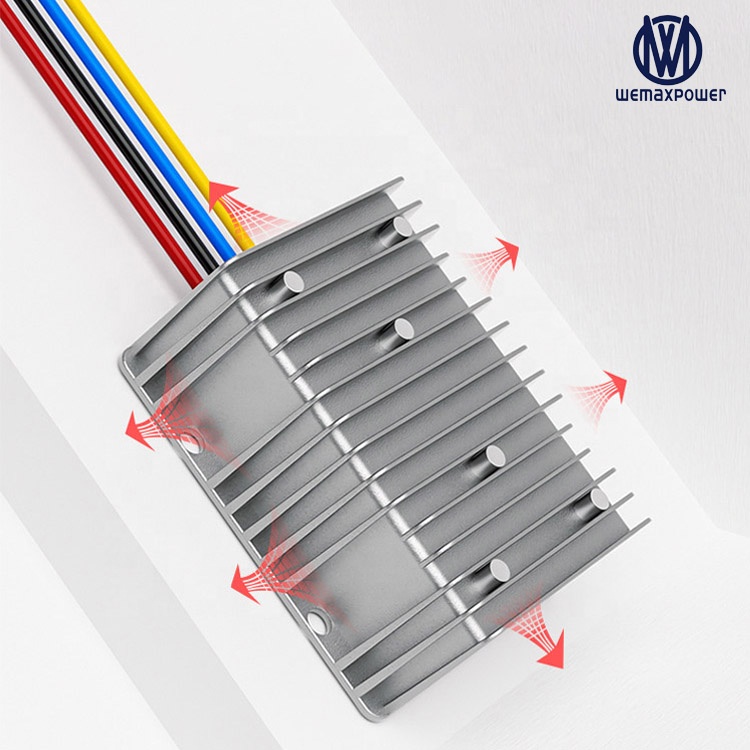

Die-cast plastic shell for more efficient heat dissipation.

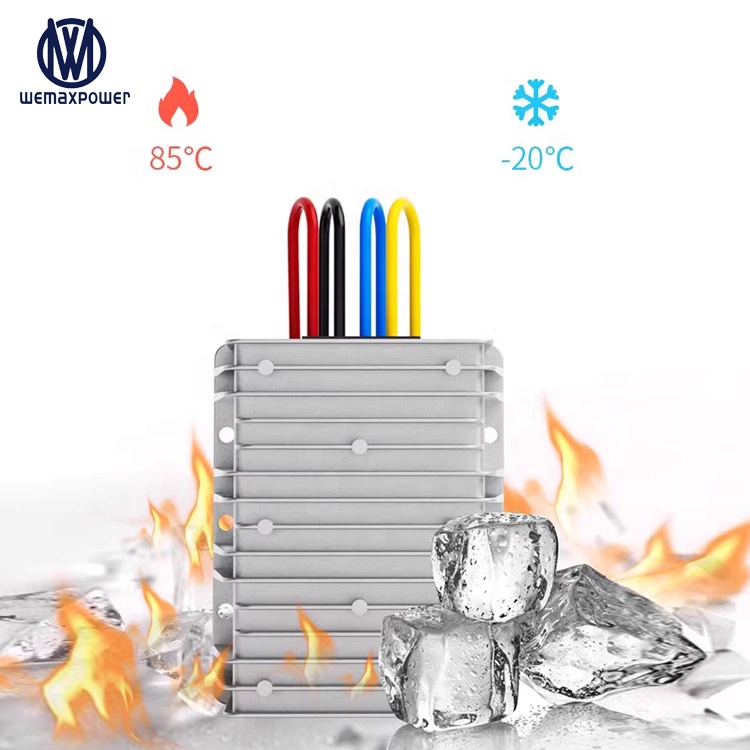

Suitable for ambient temperature -20~80°C.
Epoxy resin glue filling, IP67 protection grade, waterproof, anti shock, moisture-proof, dust-proof.

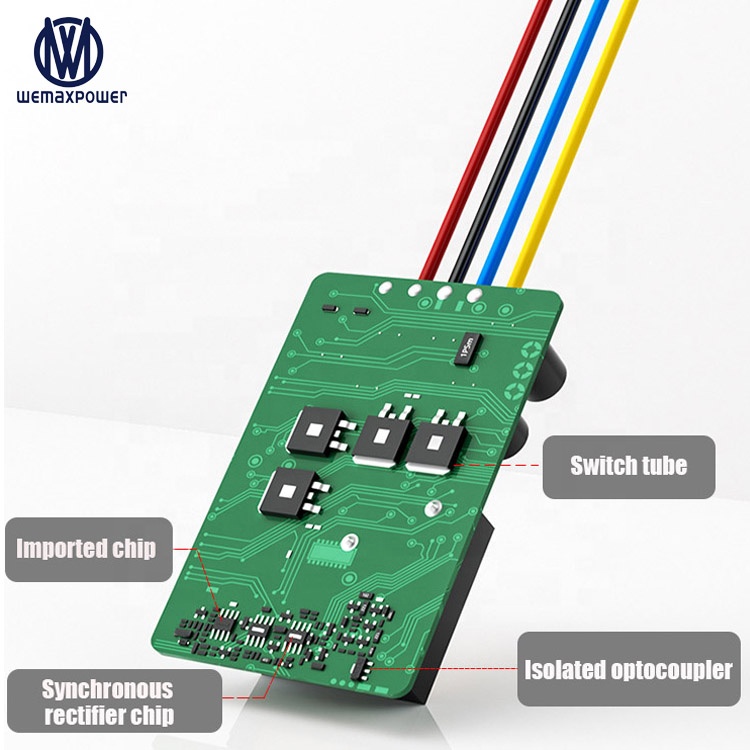

Industrial grade PSU chip, safe and reliable.
Divider
Series No. WMX-D75-150D5
Model WMX-DSD75-150S524
Product Name 80v/100v/120v to 5v isolated converter
Input rated voltage 80/100/120Vdc
Input voltage range 75-150Vdc
Conversion Efficiency 96%
Output voltage 5Vdc
Output current 24Amps
Output rated power 120Watts
Voltage regulation < 1%
Load regulation < 2%
Ripple (full load test) < 150mV
No-load current < 20mA
Working Temperature -40°c ~ +80°c
Waterproof rating IP67
Protections Over-load, Over-current, Over-temperature, Over-voltage
Machine size 100*80*39mm
N. Weight 490g
Type Input & output Isolation
Packing Standard box
Product Description
Divider
Product Details 1
Product Details 2
Product Details 3
Divider
Product Features
Dimensions and Wiring
Divider
Divider
Frequently Asked Questions

Q1. What types of power solutions do you provide?

Since 2009, our factory has provided various power solutions for different projects worldwide, including DC to DC, AC to DC, DC to AC, and AC to AC power supplies. We are committed to providing high-quality, high-performance, and cost-effective options to meet the power conversion needs of our customers.

Q2. What kind of products can we purchase?

You can purchase DC-DC Converters, DC-DC Chargers, Voltage Regulators, Adjustable Power Supplies, Power Inverters, Battery Chargers, AC DC Converters, and Switching Power Supplies.

Q3. How do you ensure product and service quality?

All our processes strictly adhere to ISO-9001 procedures. We offer a 12-month quality warranty from the delivery date. If a product does not function properly as described and the issue is proven to be caused by our factory, we will provide exchange services for the same item.

Q4. Can you provide custom manufacturing services?

Yes, we provide bespoke services to customers with specific requirements. You can send your detailed specifications, and we will check feasibility. We develop new models regularly, and we can also develop new designs based on samples you provide.

Q5. Can I order samples for testing before placing a bulk order?

Yes, we are pleased to send you samples to test the quality and performance. We are confident that once you test the product, you will be highly satisfied with the build quality and performance.

Q6. What is your Minimum Order Quantity (MOQ)?

Different products have different MOQs. Generally speaking, our minimum order quantity is 1 piece. Please contact us directly to check the MOQ for specific models.
