High Efficiency Isolation Buck DC Regulator 5A 120V 100V 90V DC DC Converter 80V to 12V Isolated
>>> DC DC Converter 80V to 12V Isolated <<<
- Light weight, small size, easy install
- Supports wide range voltage input
- Imported industrial grade power chips
- Synchronous rectification technology with high conversion efficiency
- Sufficient power
- Isolation transformer, isolation voltage: 1500VDC

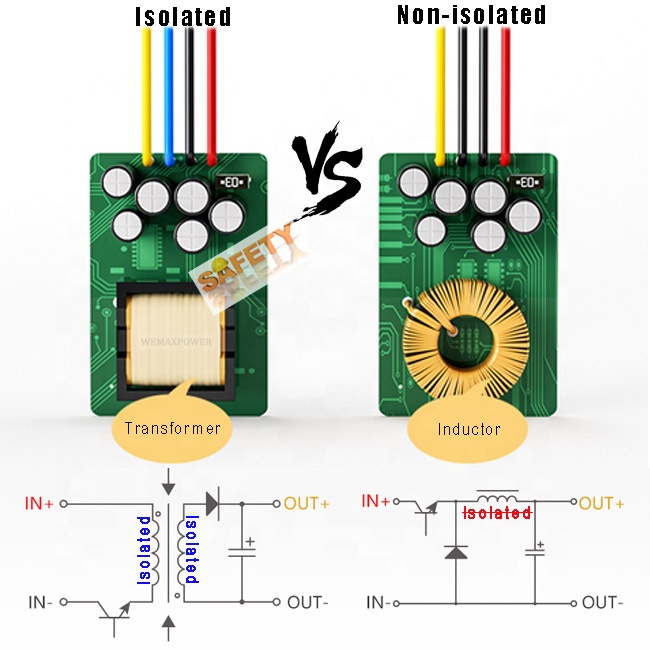

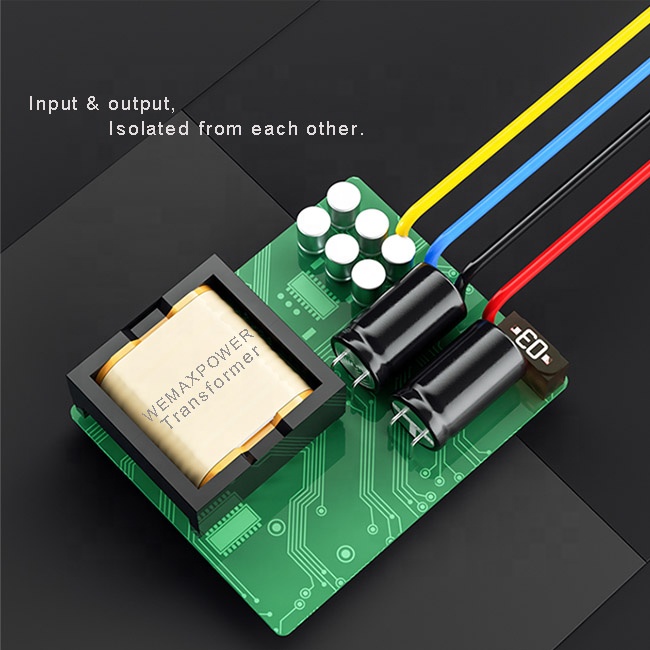

- Isolate power supply, isolate input and output from each other, refuse to burn out expensive load equipment, safe and reliable
- ABS tough shell, flame retardant and explosion-proof, corrosion resistant, antioxidant, good insulation, fast heat dissipation

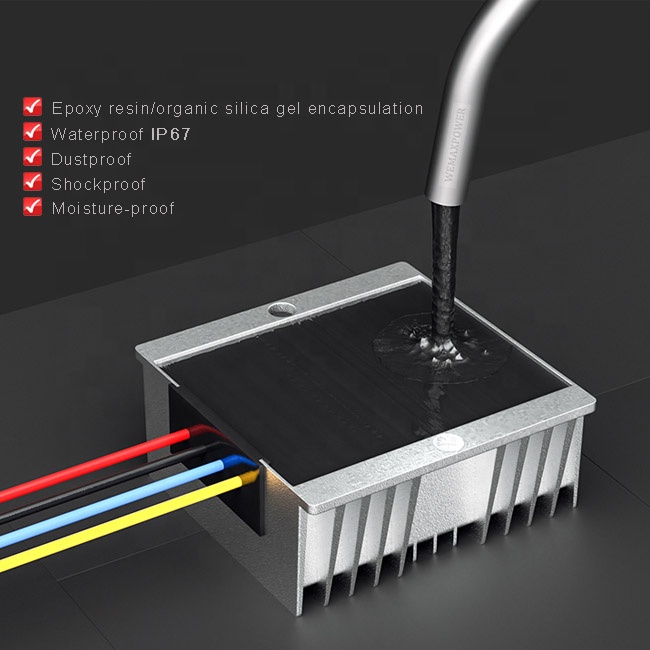

- Waterproof (IP67 waterproof grade), shockproof, moisture-proof, dustproof
- Adapt to ambient temperature -20~85°C
- Multiple protection functions: Over current, over voltage, over temperature protection, short circuit protection, strong anti-interference ability
- Widely used: various instrument fields such as intelligent robots, communication base stations, industrial control, power supply systems, onboard equipment, computer peripherals, digital products, etc.
| Series No. |
WMX-D75-150D12 |
| Model |
WMX-DSD75-150S1205 |
| Product Name |
DC DC converter 80v to 12v isolated |
| Input Rated Voltage |
80Vdc / 90Vdc / 100Vdc |
| Input Voltage Range |
75-150Vdc |
| Conversion Efficiency |
96% |
| Output Voltage |
12Vdc |
| Output Current |
5Amps |
| Output Rated Power |
60Watts |
| Voltage Regulation |
< 1% |
| Load Regulation |
< 2% |
| Ripple (Full Load Test) |
< 150mV |
| No-load Current |
< 20mA |
| Working Temperature |
-40°C ~ +80°C |
| Waterproof Rating |
IP 67 |
| Protections |
Over-load, Over-current, Over-temperature, Over-voltage |
| Machine Size |
74*74*32mm |
| N. Weight |
290g |
| Type |
Input output Isolation |
| Packing |
White standard box |
Why choose us?
We are a professional DC-DC converters manufacturer for more than 10 years. The performance of our converters is extremely stable, and our product technology is updated every year.
If the converter burns out, what will happen to the load?
Because the converter is isolated, once the converter is burnt out, the output voltage will become 0 V, which will not have any impact on the load and will protect the load from being damaged.
Why are other products cheaper than yours?
Other suppliers may use cheap components resulting in insufficient power output. Our products are made with imported components that support long-term full load work.
What about your after-sales service?
We provide a 1-year guarantee period. Our return policy allows for the exchange of goods if any quality problem occurs within the warranty period.
What is the MOQ of the 12v isolated dc converter?
We support a low MOQ. 2~5 units for sample testing are available.
What can you get from us?
You can get excellent products featuring unique design and strict quality control, great services including OEM, ODM, after-sales services, fast delivery, and professional business consultation.
Wemax Power
