High Quality Input 9-36v 12v 24v 12/24v Step Down 12vdc 60w Voltage Regulator 12v/24v to 12V 5a Isolated Dc Dc Converter

Product Description

High Quality CE RoHS 96W Car LED Step Down Voltage Transformer 60V to 12V 8A DC-DC Converter
9-36V to 12V 5A Isolated Converter
High Quality Input 9-36v 12v 24v 12/24v Step Down 12vdc 60w Voltage Regulator 12v/24v to 12V 5a Isolated Dc Dc Converter
Light weight, small size, easy install
Supports wide range voltage input
Imported industrial grade power chips
Synchronous rectification technology with high conversion efficiency
Sufficient power output

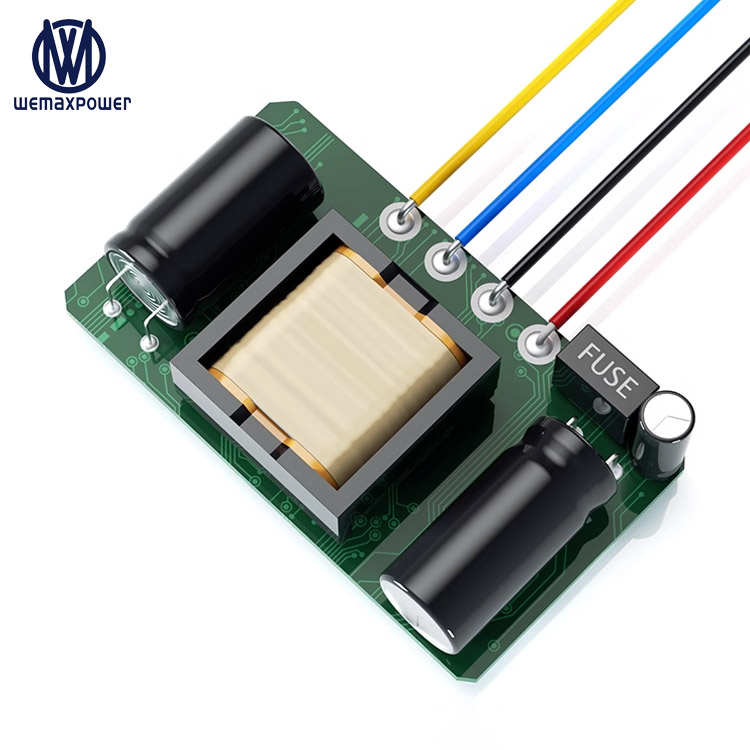

Isolation transformer, isolation voltage: 1500VDC
Isolate power supply, isolate input and output, prevents burning out expensive load equipment
ABS tough shell, flame retardant, explosion-proof, corrosion resistant, antioxidant, fast heat dissipation
Waterproof (IP67 grade), shockproof, moisture-proof, dustproof
Adapt to ambient temperature -20~85°C
Multiple protections: over current, over voltage, over temperature, short circuit, strong anti-interference
Wide usage: intelligent robots, communication base stations, industrial control, onboard equipment, etc.
Power Specifications Banner

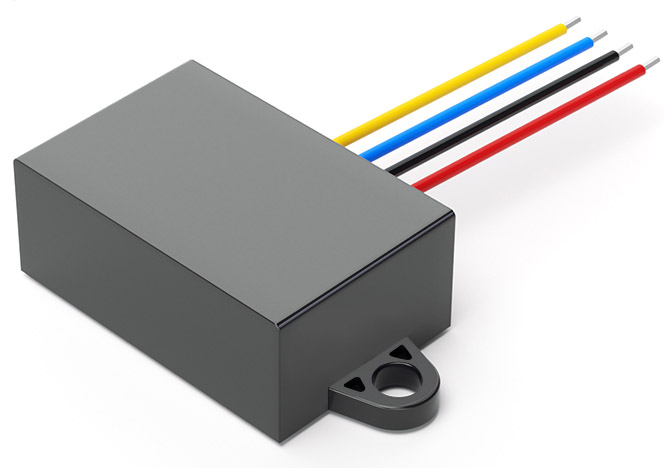

9-36v to 12v 5a isolated converter image
Product Name 9-36v to 12v 5a isolated converter
Model NO. WMX-DSD9-36S1205
Input Voltage 12/24Vdc (9~36Vdc)
Output Voltage 12Vdc
Output Current 5A
Output Power 60W
Input Wire Length 13~15cm
Output Wire Length 13~15cm
Working Temp. -40°c ~ +80°c
Waterproof IP67
Converter Type Isolated
Shell Material Plastic
Dimension & N.W 58*40*22mm, 90g
Protections Over-load, Over-current, Over-temperature, Over-voltage

Important Selection Guide:

  1. If you are not familiar with how to choose the appropriate converter module, you should know the power of load equipment (based on equipment label and parameter labeling) before purchasing.
  2. If you need to work for a long time, you should choose the power module with higher power. The actual power of load equipment is 30%~80% of the rated power of the module.
  3. Full load and overload have a great impact on the stability, temperature and service life of the module. At any time, it may cause irreparable damage.
Buyer Feedback
Buyer Feedback Screenshot
Frequently Asked Questions
Why choose us?
We are a direct dc-dc converters manufacturer for more than 8 years. The performance of our converters is highly stable, and our product technology is updated every year. We supply direct OEM/ODM services.
Are there any requirements for product load?
Yes, the dc-dc converters are with fixed voltage output, so they cannot be used for charging the batteries directly. If you have any requirements for charging batteries, please choose our dc-dc chargers.
Why are some other products cheaper?
Because other suppliers may use cheap components, resulting in insufficient power output. Our products are made with imported industrial-grade components, supporting long-term full load work.
What about your after-sales service?
We offer a 1-year guarantee. If there is any quality problem, we support a flexible exchange policy for the goods.
What are the Payment & Logistics options?
Payment terms: L/C, T/T, Western Union, MoneyGram, PayPal, etc. Shipping terms: By DHL, UPS, FedEx, TNT, EMS, Sea freight, etc.
What is the MOQ of the 9-36v to 12v 5a isolated converter?
We support a low MOQ policy. A sample testing order of 5 units is available to start with.
