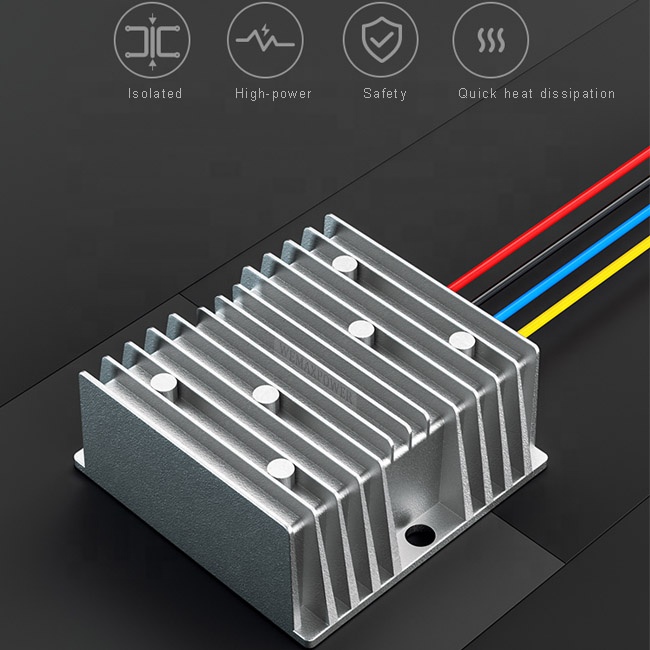

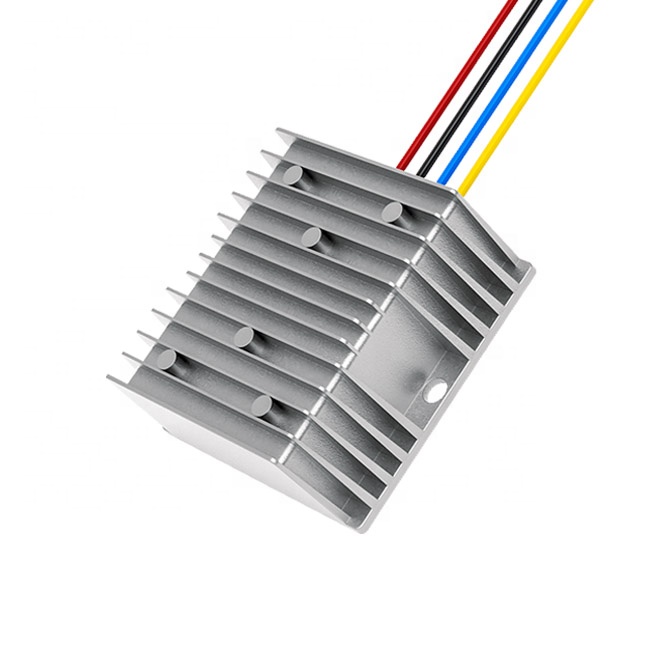

Input and Output Isolation 75-150v Input Range Step Down Module 10a 120v 100v 80v to 5v Isolated Dc to Dc Converter

Product Description

Waterproof Input and output isolation 75-150v input range step down module 10a 120v 100v 80v to 5v isolated dc to dc converter

Input and Output Isolation 75-150v Input Range Step Down Module 10a 120v 100v 80v to 5v Isolated Dc to Dc Converter

Similar Products

Similar Products Showcase

80v / 100v / 120v to 5v isolated dc converter

Divider
  • High quality components.
  • Full power, stable voltage & current output.
  • Wide input voltage range 75-150vdc.
  • Waterproof IP67 & anti-shock protection, Ultra compact size, light weight.
  • Industry grade product, efficiency up to 96%.

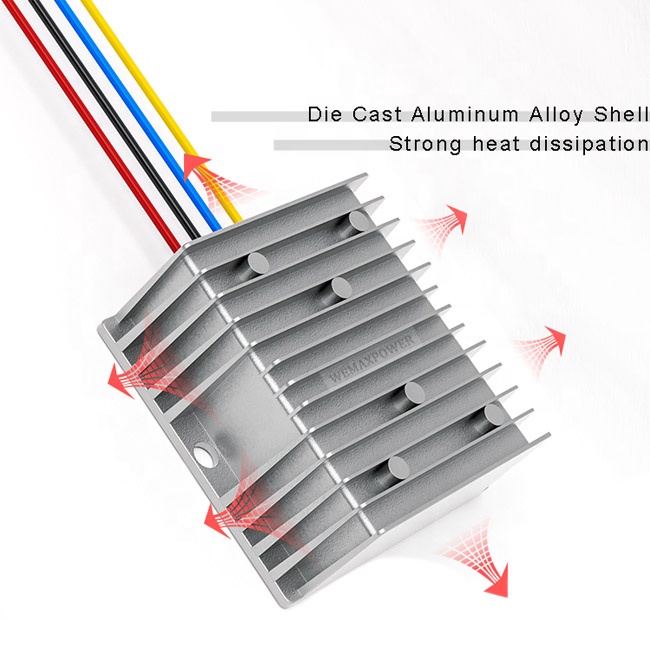

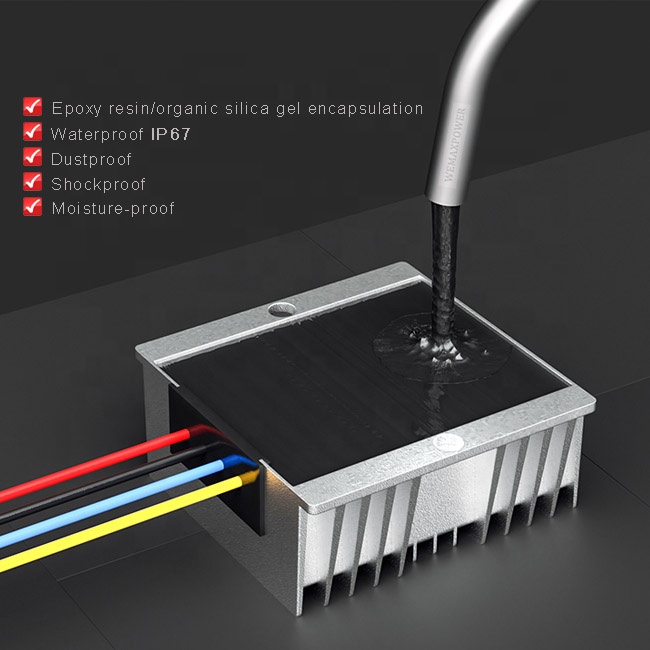

  • Die-cast aluminum shell, epoxy potting.

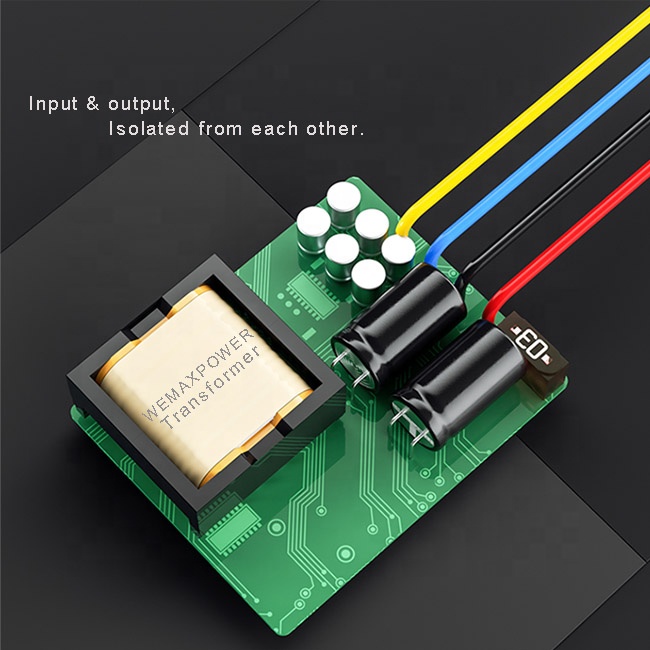

  • Isolated Module.
Divider
Series No. WMX-D75-150D5
Model WMX-DSD75-150S510
Product Name Input and output isolation 75-150v input range step down module 10a 120v 100v 80v to 5v isolated dc to dc converter
Input rated voltage 80/100/120Vdc
Input voltage range 75-150Vdc
Conversion Efficiency 96%
Output voltage 5Vdc
Output current 10Amps
Output rated power 50Watts
Voltage regulation < 1%
Load regulation < 2%
Ripple (full load test) < 150mV
No-load current < 20mA
Working Temperature -40°c ~ +80°c
Waterproof rating IP 67
Protections Over-load, Over-current, Over-temperature, Over-voltage
Machine size 74*74*32mm
N. Weight 290g
Type Input output Isolation
Packing Standard box

Product Description

Divider

Buyer Feedback

Buyer Feedback

Frequently Asked Questions

Divider

How do we work?

Since 2009, our factory has provided various power solutions for different projects worldwide, including DC to DC, AC to DC, DC to AC, and AC to AC power supplies. We are committed to providing high-quality, high-performance, and cost-effective options to meet the power conversion needs of our customers.

What kind of products can you buy from us?

DC-DC Converter, DC-DC Charger, Voltage regulator, Adjustable Power Supply, Power Inverter, Battery Charger, AC DC Converter, and Switching Power Supply.

How do you ensure your product and service quality?

All our processes strictly adhere to ISO-9001 procedures. We offer a 12-month quality warranty from the delivery date. If the product does not function properly as described and the issue is proven to be caused by our factory, we will provide replacement services for the same item. Our staff is always available to assist with any support you need.

Can you provide custom services based on specific requirements?

Yes, we can provide customized solutions to meet specific requirements. Please send us your detailed technical specifications, and our team will review the feasibility. We continually develop new models, and we can also engineer new products directly based on sample units provided by customers.

Can I buy sample units for testing before placing a bulk order?

Yes, we welcome sample orders so you can evaluate the quality and overall performance of our power solutions firsthand. We are confident in our product quality, competitive pricing, and technical support to ensure a reliable partnership.

How can I place an order and arrange payment?

Once we confirm your specific product requirements, we will issue a pro-forma invoice. Payment can be conveniently processed via bank wire transfer (T/T), Western Union, or PayPal.
