| Series No. | WMX-D50-100D24 |
| Model | WMX-DSD50-100S2405 |
| Product Name | 60v 72v 80v to 24v isolated dc dc converter |
| Input rated voltage | 60/72/80Vdc |
| Input voltage range | 50-100Vdc |
| Conversion Efficiency | 96% |
| Output voltage | 24Vdc |
| Output current | 5Amps |
| Output rated power | 120Watts |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Ripple (full load test) | < 150mV |
| No-load current | < 20mA |
| Working Temperature | -40°c ~ +80°c |

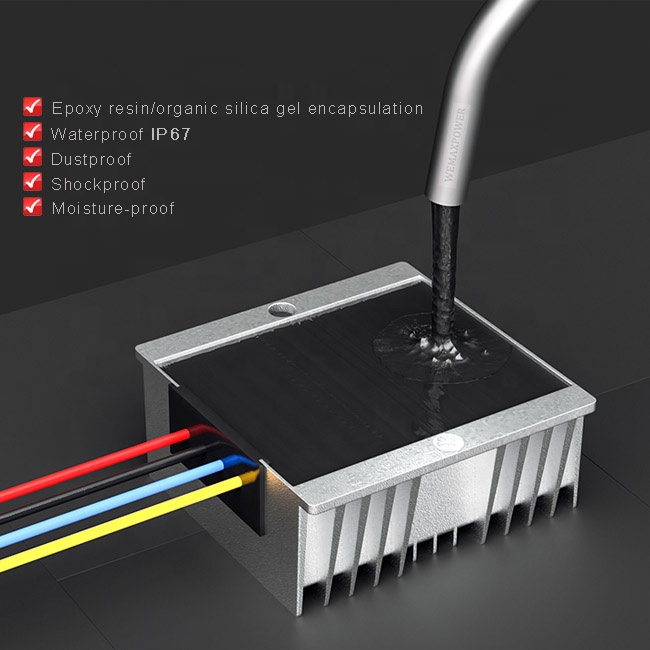

| Waterproof rating | IP 67 |
| Protections | Over-load, Over-current, Over-temperature, Over-voltage |
| Machine size | 74*74*32mm |
| N. Weight | 290g |

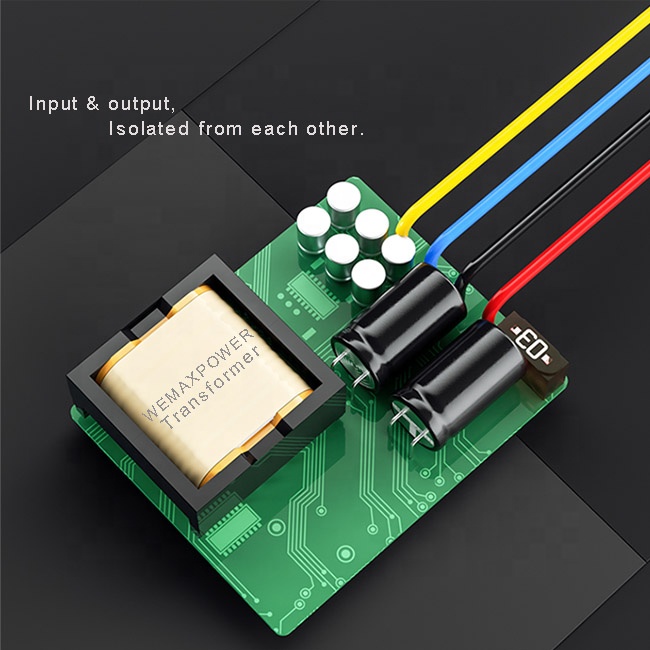

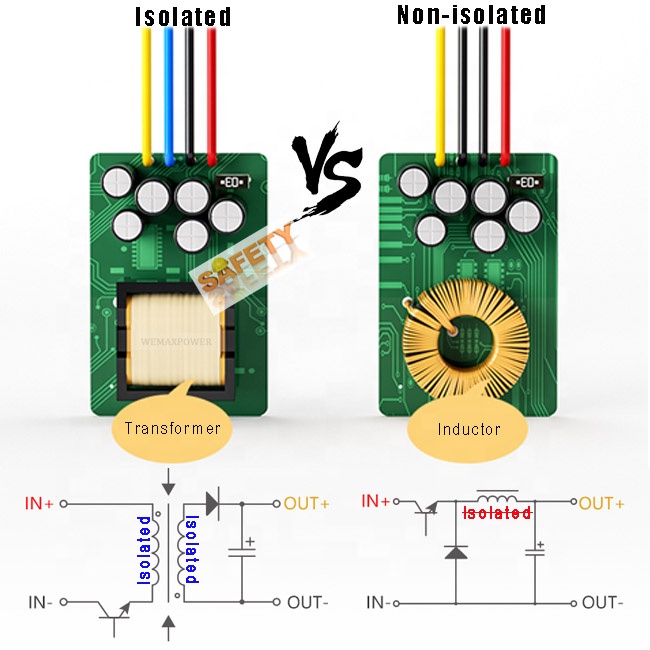

| Type | Input output Isolation |
| Packing | White standard box |
