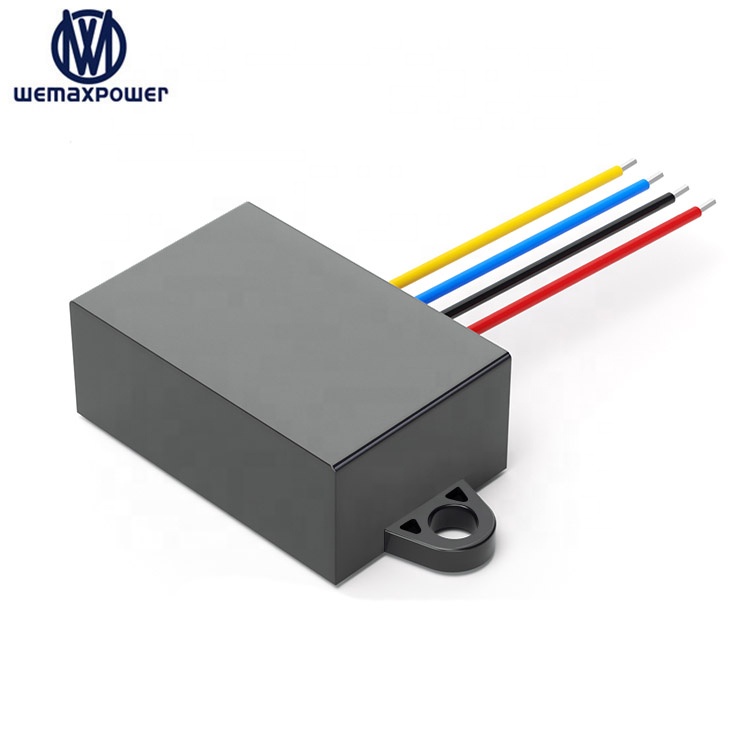

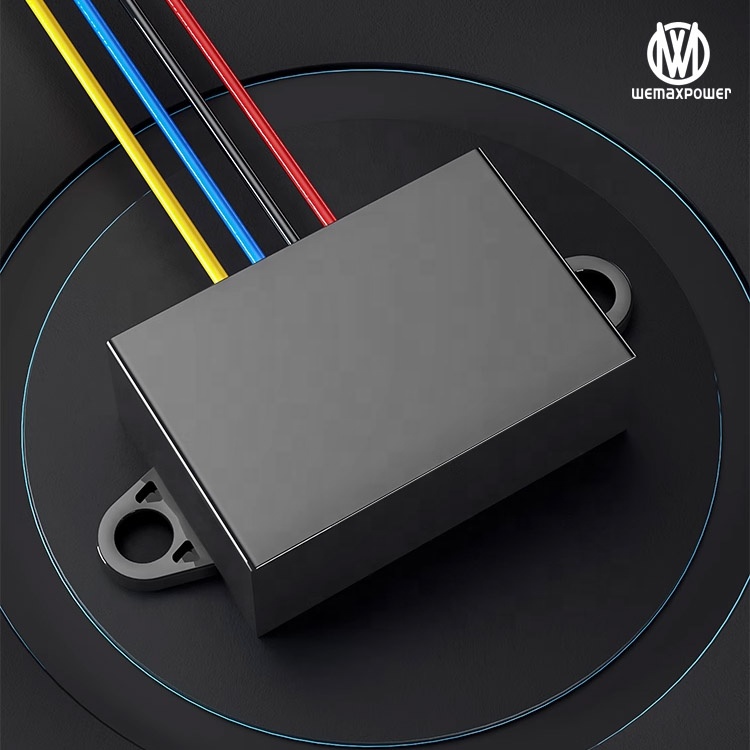

Isolation 8amp 60vdc 72vdc 80vdc Step Down 5vdc Voltage Regulator 60v 72v 80v to 5v 8a Isolated Dc Dc Converter

Product Description

Isolation 8amp 60vdc 72vdc 80vdc step down 5vdc voltage regulator
60v 72v 80v to 5v 8a isolated dc dc converter
Isolation 8amp 60vdc 72vdc 80vdc Step Down 5vdc Voltage Regulator 60v 72v 80v to 5v 8a Isolated Dc Dc Converter
50~100v to 5v 8a isolated converter
Divider

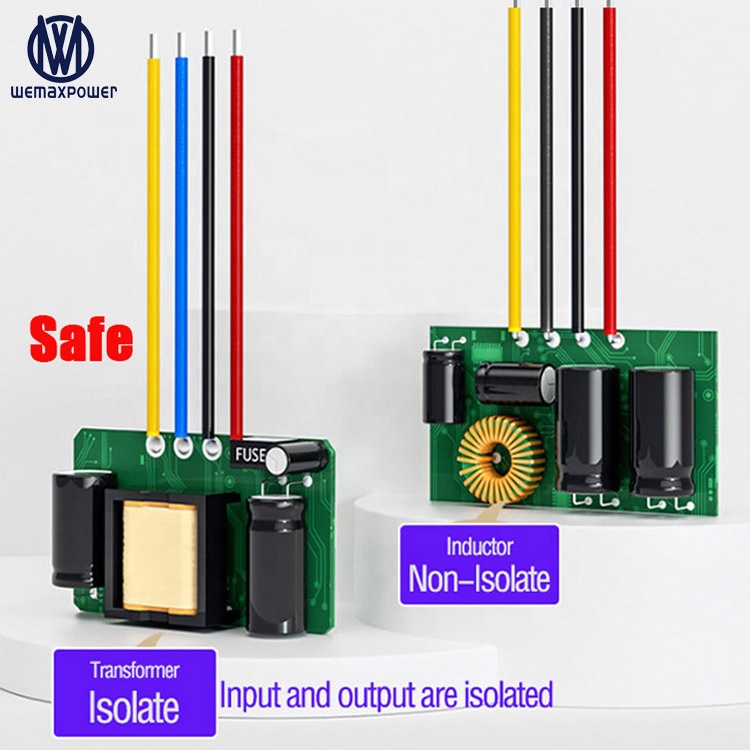

Isolated dc dc converter , Safe and reliable
The input & output electrical appliances are completely isolated.
No high voltage direct output.
Positive and negative PSU can also be used.
Intelligent overload protection.
Prevent burning expensive load equipment.
Die-cast plastic shell for more efficient heat dissipation.
Suitable for ambient temperature -20~80°C.
Epoxy resin glue filling, IP67 protection grade, waterproof, anti shock, moisture-proof, dust-proof.
Industrial grade PSU chip.
Divider
Series No. WMX-D50-100D5
Model WMX-DSD50-100S508
Product Name 60v/72v/80v to 5v 8a isolated Converter
Input rated voltage 60/72/80Vdc
Input voltage range 50-100Vdc
Conversion Efficiency 96%
Output voltage 5Vdc
Output current 8Amps
Output rated power 40Watts
Voltage regulation < 1%
Load regulation < 2%
Ripple (full load test) < 150mV
No-load current < 20mA
Working Temperature -40°c ~ +80°c
Waterproof rating IP 67
Protections Over-load, Over-current, Over-temperature, Over-voltage
Machine size 58*40*22mm
N. Weight 90g
Type Input & output Isolation
Product Overviews
Product Overview 1 Product Overview 2 Product Overview 3 Product Overview 4
Dimensions Diagram
Detailed Features
Divider
Application
Divider
Factory Overview
Divider
Frequently Asked Questions
Q1. How does your factory work?
Since 2009, our factory has provided various power solutions for different projects worldwide, including DC to DC, AC to DC, DC to AC, and AC to AC power supplies. We are committed to providing high-quality, high-performance, and cost-effective options to meet the power conversion needs of our customers.
Q2. What kind of products can we buy from you?
DC-DC Converter, DC-DC Charger, Voltage regulator, Adjustable Power Supply, Power Inverter, Battery Charger, AC DC Converter, Switching Power Supply.
Q3. How do you ensure your product and service quality?
All our processes strictly adhere to ISO-9001 procedures. We provide a 12-month quality warranty against the delivery date. If the product does not work properly as described due to manufacturing, we will provide exchange services for the same item. Also, our support staff will always be there for you whenever needed.
Q4. Can you make customized services as per customer's specific requirements?
Yes, we can provide bespoke services to customers with specific requirements. You can send the detailed requirements, and we will check if we can develop them. We develop new models every month, some of which may not yet be updated on our website. Alternatively, you can send us samples, and we can develop new models specifically for you.
Q5. Can I buy 1 or 2 pieces of samples for testing before placing a bulk order?
Yes, we are pleased to send you samples to test the quality and performance. We are confident that once you test the product, you will be highly satisfied with both the quality and our competitive pricing.
Q6. What is your Minimum Order Quantity (MOQ)?
Different products have different MOQs. Generally speaking, our MOQ is 2 pieces. Please do not hesitate to check with us for specific items.
