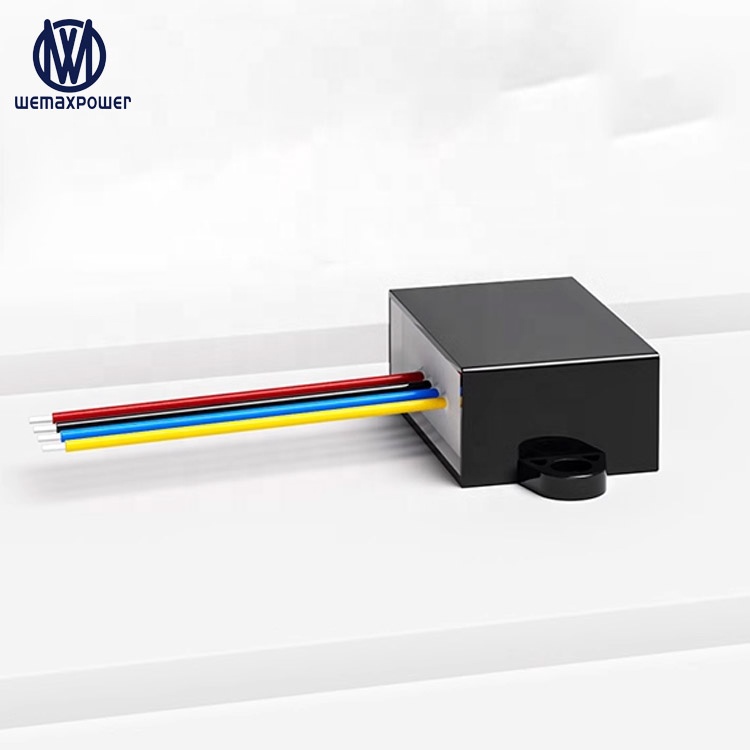

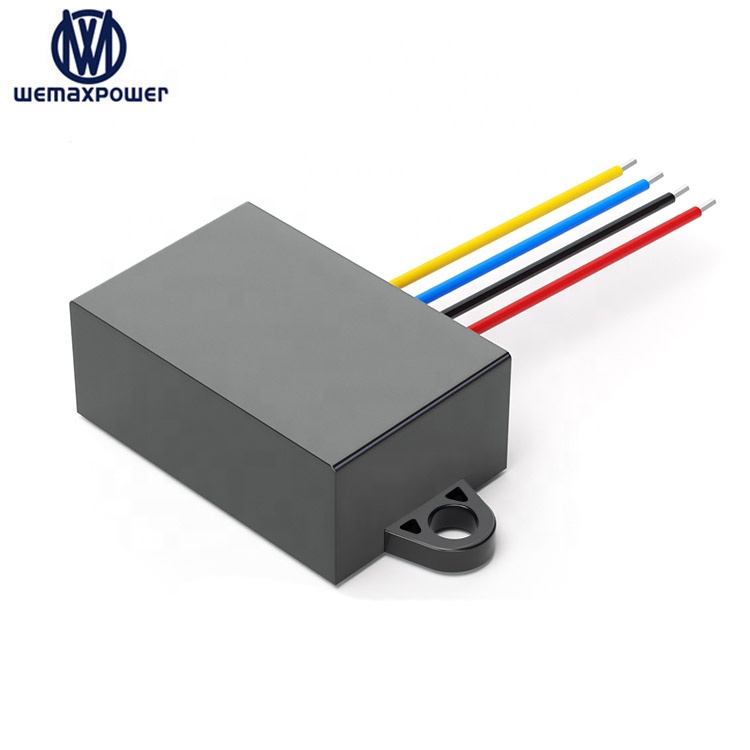

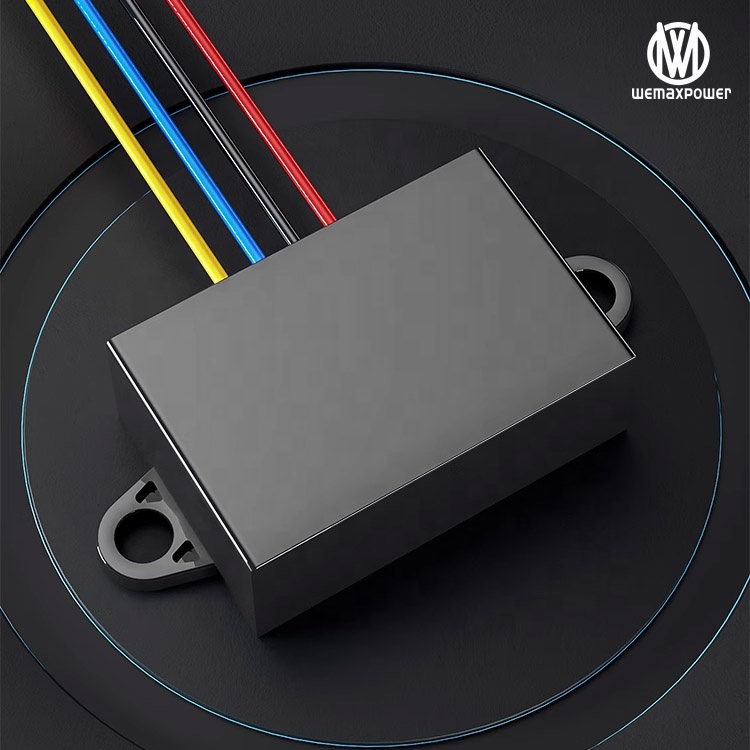

Isolation Wide Input 20-120v Voltage Step Down 1.5a Dc Regulator 100v 80v 72v 60v 48v 36v 24v to 12v 1.5amp Isolated Converter

Product Description

Isolation wide input 20-120v voltage step down 1.5a dc regulator 100v 80v 72v 60v 48v 36v 24v to 12v 1.5amp isolated converter

Isolation Wide Input 20-120v Voltage Step Down 1.5a Dc Regulator

20~120v to 12v 1.5a isolated converter

Divider Line
Isolate DC-DC converter, Safe and reliable
  • Light weight, small size, easy install
  • Supports wide range voltage input
  • Imported industrial grade power chips
  • Synchronous rectification technology with high conversion efficiency
  • Sufficient power

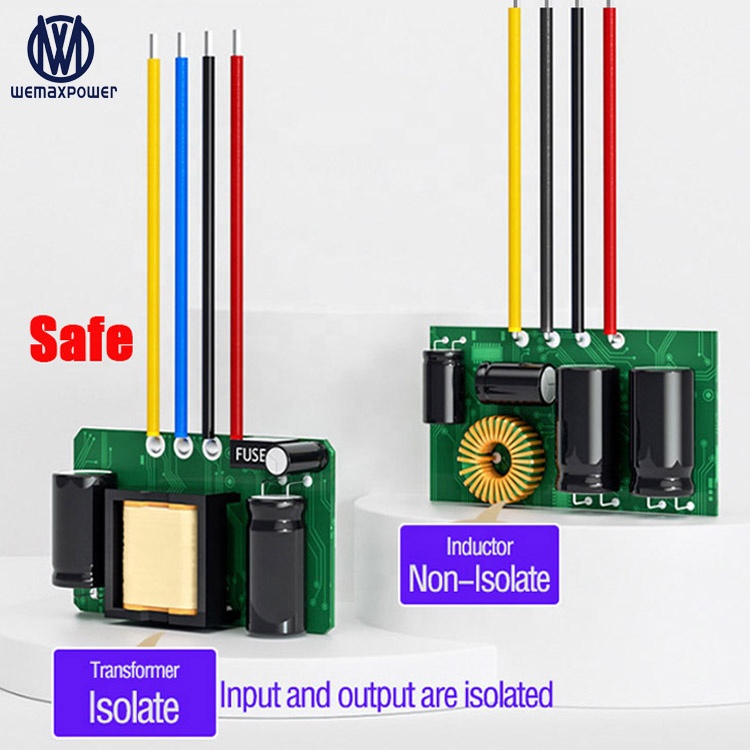

  • Isolation transformer, isolation voltage: 1500VDC
  • Isolate power supply, isolate input and output from each other, prevent burn out expensive load equipment, safe and reliable
  • ABS tough shell, flame retardant and explosion-proof, corrosion resistant, antioxidant, good insulation, fast heat dissipation
  • Waterproof (IP67 waterproof grade), shockproof, moisture-proof, dustproof
  • Adapt to ambient temperature -20~85 ° C
  • Multiple protection functions: Over current, over voltage, over temperature protection, short circuit protection, strong anti-interference ability
  • Widely used: various instrument fields such as intelligent robots, communication base stations, industrial control, power supply systems, onboard equipment, computer peripherals, digital products, etc
Divider Line
Technical Specifications
Model WMX-DSD20-120S121.5
Product Name 20-120v to 12v 1.5a isolated Converter
Input rated voltage 24V/36V/48V/60V/72V/80V/100Vdc
Input voltage range 20~120Vdc
Conversion Efficiency 96%
Output voltage 12Vdc
Output current 1.5A
Output rated power 18W
Voltage regulation < 1%
Load regulation < 2%
Ripple (full load test) < 150mV
No-load current < 20mA
Working Temperature -40°c ~ +80°c
Waterproof rating IP 67
Protections Over-load, Over-current, Over-temperature, Over-voltage
Machine size 58*40*22mm
N. Weight 90g
Type Input & output Isolation
Product Overviews
Separator Separator Separator Separator
Frequently Asked Questions
What kind of products can you buy from us?
We offer DC-DC Converters, DC-DC Chargers, Voltage regulators, Adjustable Power Supplies, Power Inverters, Battery Chargers, AC-DC Converters, and Switching Power Supplies.
How do you ensure product and service quality?
All our manufacturing processes strictly adhere to ISO-9001 procedures. We provide a 12-month quality warranty against the delivery date. If the product does not work properly as described and the issue is proven to be caused by production, we will provide exchange services for the same item.
Can you provide custom services based on specific requirements?
Yes, we can provide bespoke services to customers with specific requirements. You can send us your detailed requirements, and we will check if we can develop them. We regularly develop new models to meet various applications. Alternatively, you can send us samples for custom development.
Can I buy 1 or 2 pieces of samples for testing before placing a bulk order?
Yes, we are pleased to supply samples to test quality and performance. We are confident that once you evaluate the sample, you will be highly satisfied with our power supply solutions.
How can I order and make payment?
Once we clarify your requirements and determine the ideal product for you, we will send a pro-forma invoice. Payment can be processed via TT bank transfer, Western Union, or PayPal.
What is your Minimum Order Quantity?
Different products have different MOQs. Generally speaking, our minimum order quantity starts from 2 pieces. Please check with us directly for specific items.
