Isolation Module 10amp 60vdc 72vdc 80vdc Step Down 24vdc Voltage Regulator 60v 72v 80v to 24v 10a Dc to Dc Isolated Converter
Isolation Module 10amp 60vdc 72vdc 80vdc Step Down 24vdc Voltage Regulator 60v 72v 80v to 24v 10a Dc to Dc Isolated Converter
Isolation Module 10amp 60vdc 72vdc 80vdc Step Down 24vdc Voltage Regulator 60v 72v 80v to 24v 10a Dc to Dc Isolated Converter
Isolation Module 10amp 60vdc 72vdc 80vdc Step Down 24vdc Voltage Regulator 60v 72v 80v to 24v 10a Dc to Dc Isolated Converter
Isolation Module 10amp 60vdc 72vdc 80vdc Step Down 24vdc Voltage Regulator 60v 72v 80v to 24v 10a Dc to Dc Isolated Converter
1 / 5
Isolation Module 10amp 60vdc 72vdc 80vdc Step Down 24vdc Voltage Regulator 60v 72v 80v to 24v 10a Dc to Dc Isolated Converter
Isolation Module 10amp 60vdc 72vdc 80vdc Step Down 24vdc Voltage Regulator 60v 72v 80v to 24v 10a Dc to Dc Isolated Converter
Isolation Module 10amp 60vdc 72vdc 80vdc Step Down 24vdc Voltage Regulator 60v 72v 80v to 24v 10a Dc to Dc Isolated Converter
Isolation Module 10amp 60vdc 72vdc 80vdc Step Down 24vdc Voltage Regulator 60v 72v 80v to 24v 10a Dc to Dc Isolated Converter
Isolation Module 10amp 60vdc 72vdc 80vdc Step Down 24vdc Voltage Regulator 60v 72v 80v to 24v 10a Dc to Dc Isolated Converter

Isolation Module 10amp 60vdc 72vdc 80vdc Step Down 24vdc Voltage Regulator 60v 72v 80v to 24v 10a Dc to Dc Isolated Converter

Send Inquiry

Product Description

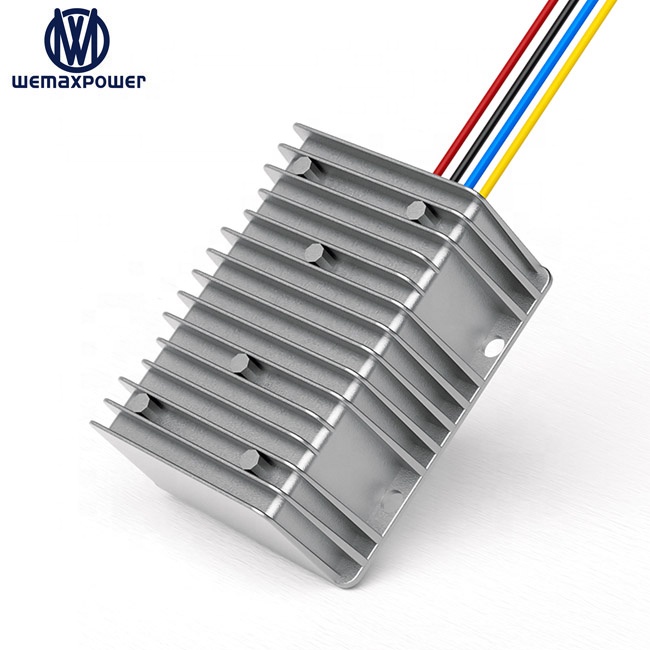

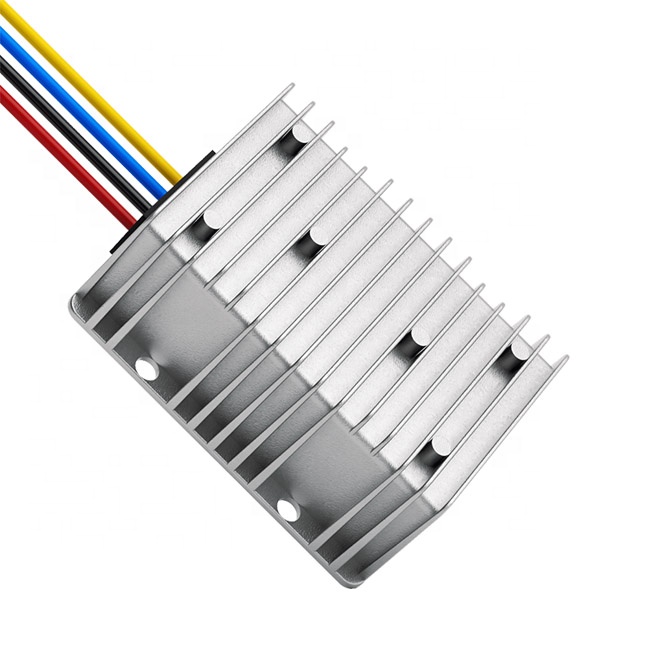

Isolation module 10amp 60vdc 72vdc 80vdc step down 24vdc voltage regulator 60v 72v 80v to 24v 10a dc to dc isolated converter

Isolation Module 10amp 60vdc 72vdc 80vdc Step Down 24vdc Voltage Regulator 60v 72v 80v to 24v 10a Dc to Dc Isolated Converter
Similar Products
Similar Products

50~100v to 24v isolated dc converter

Separator Line

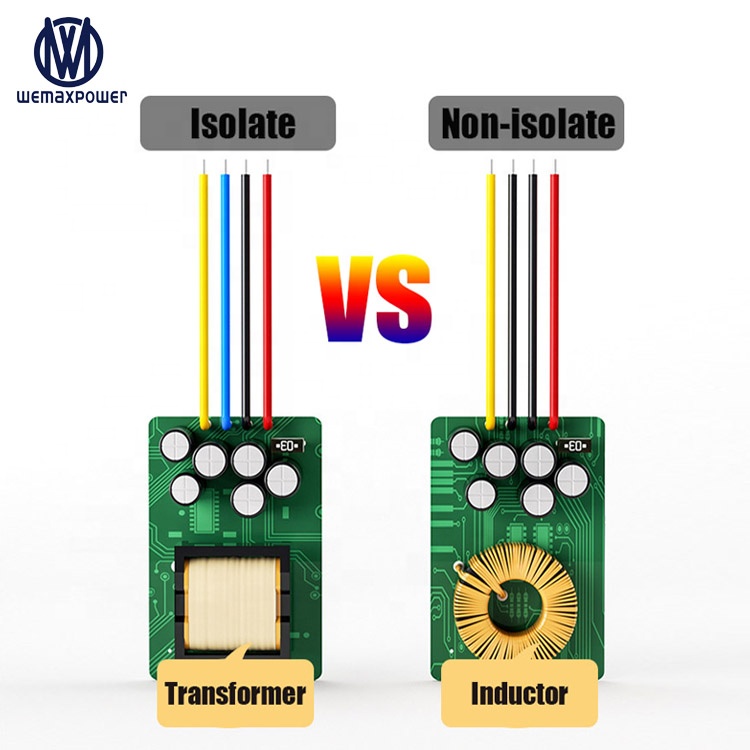

  • The input & output electrical appliances are completely isolated.
  • No high voltage direct output.
  • Positive and negative PSU can also be used.
  • Intelligent overload protection.
  • Prevent burning expensive load equipment.
  • Die-cast plastic shell for more efficient heat dissipation.

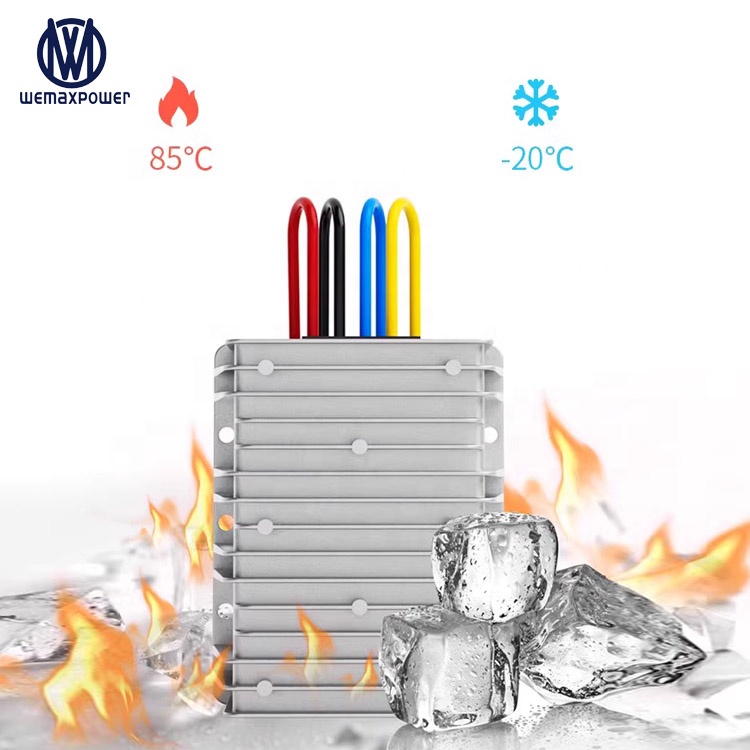

  • Suitable for ambient temperature -20~80°C.
  • Epoxy resin glue filling, IP67 protection grade, waterproof, anti shock, moisture-proof, dust-proof.
  • Industrial grade PSU chip, safe and reliable.
Separator Line
Series No. WMX-D50-100D24
Model WMX-DSD50-100S2410
Product Name 60v/72v/80v to 24v isolated converter
Input rated voltage 60/72/80Vdc
Input voltage range 50-100Vdc
Conversion Efficiency 96%
Output voltage 24Vdc
Output current 10Amps
Output rated power 240Watts
Voltage regulation < 1%
Load regulation < 2%
Ripple (full load test) < 150mV
No-load current < 20mA
Working Temperature -40°c ~ +80°c
Waterproof rating IP67
Protections Over-load, Over-current, Over-temperature, Over-voltage
Machine size 100*80*39mm
N. Weight 490g
Type Input & output Isolation
Packing Standard box
Product Description
Separator Line
Product Details 1
Product Details 2
Product Details 3
Separator Line
Dimensions
Wiring Instructions
