Good quality 120vdc 100vdc 80vdc to 5vdc 15a step down voltage isolation 120v 100v 80v to 5v isolated dc converter
Good Quality 120vdc 100vdc 80vdc to 5vdc 15a Step Down Voltage Isolation 120v 100v 80v to 5v Isolated Dc Converter
Similar Products
Similar Products
>>> 80v / 100v / 120v to 5v isolated dc dc converter <<<
Features
  • Light weight, small size, easy install
  • Supports wide range voltage input
  • Imported industrial grade power chips
  • Synchronous rectification technology with high conversion efficiency
  • Sufficient power
  • Isolation transformer, isolation voltage: 1500VDC

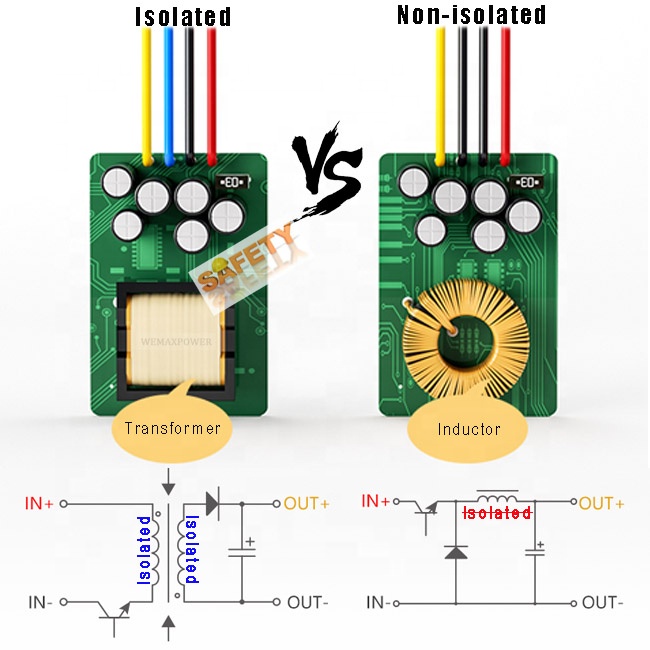

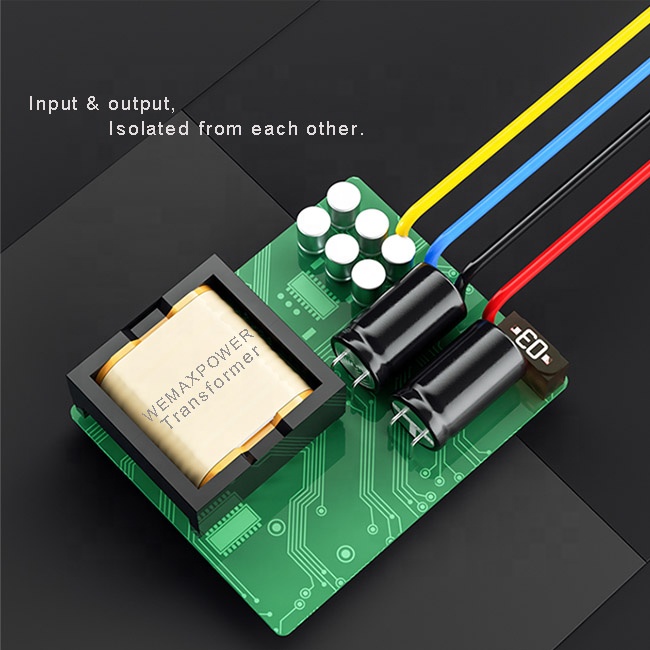

  • Isolate power supply, isolate input and output from each other, refuse to burn out expensive load equipment, safe and reliable
  • ABS tough shell, flame retardant and explosion-proof, corrosion resistant, antioxidant, good insulation, fast heat dissipation

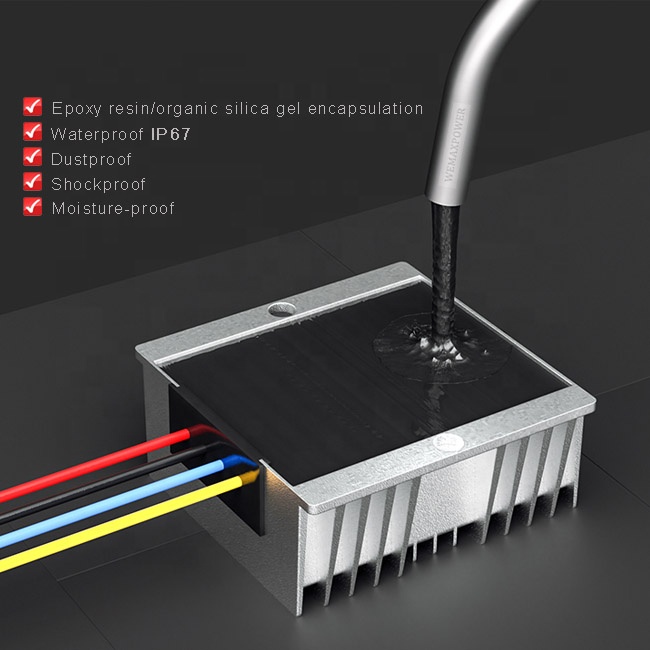

  • Waterproof (IP67 waterproof grade), shockproof, moisture-proof, dustproof
  • Adapt to ambient temperature -20~85 ° C
  • Multiple protection functions: Over current, over voltage, over temperature protection, short circuit protection, strong anti-interference ability
  • Widely used: various instrument fields such as intelligent robots, communication base stations, industrial control, power supply systems, onboard equipment, computer peripherals, digital products, etc
Specification
Series No. WMX-D75-150D5
Model WMX-DSD75-150S515
Product Name 5v isolated dc-dc converter
Input rated voltage 80/100/120Vdc
Input voltage range 75-150Vdc
Conversion Efficiency 96%
Output voltage 5Vdc
Output current 15Amps
Output rated power 75Watts
Voltage regulation < 1%
Load regulation < 2%
Ripple (full load test) < 150mV
No-load current < 20mA
Working Temperature -40°c ~ +80°c
Waterproof rating IP 67
Protections Over-load, Over-current, Over-temperature, Over-voltage
Machine size 74*74*32mm
N. Weight 290g
Type Input output Isolation
Packing White standard box
Product Description
Description Image 1
Description Image 2
Description Image 3
Description Image 4
Description Image 5
Description Image 6
Description Image 7
Description Image 8
Description Image 9
Description Image 10
Description Image 11
Description Image 12
Description Image 13
Description Image 14
Buyer Feedback
Buyer Feedback
Frequently Asked Questions
Why choose our isolated DC-DC converters?
We are a dedicated DC-DC converters manufacturer with more than 10 years of experience. The performance of our converters is highly stable, and our product technology is updated every year.
If the converter burns out, what will happen to the load?
Because the converter is isolated, once it burns out, the output voltage will become 0 V. This prevents any impact on the load and protects expensive load equipment from being damaged.
Why are some other products cheaper?
Some suppliers use lower-quality components, which results in insufficient power output. Our products are manufactured using imported industrial-grade components and support long-term, full-load operation safely.
What is the warranty and after-sales service policy?
We provide a 1-year guarantee. Within the warranty period, we support a flexible exchange policy if there are any quality issues.
What are the payment and logistics options?
We support payment terms including L/C, T/T, Western Union, MoneyGram, and Paypal. Shipping terms include DHL, UPS, FedEx, TNT, EMS, and Sea cargo.
What is the Minimum Order Quantity (MOQ) for the 5v isolated dc-dc converter?
We offer a low MOQ, and 2 to 5 units are available for sample testing.
