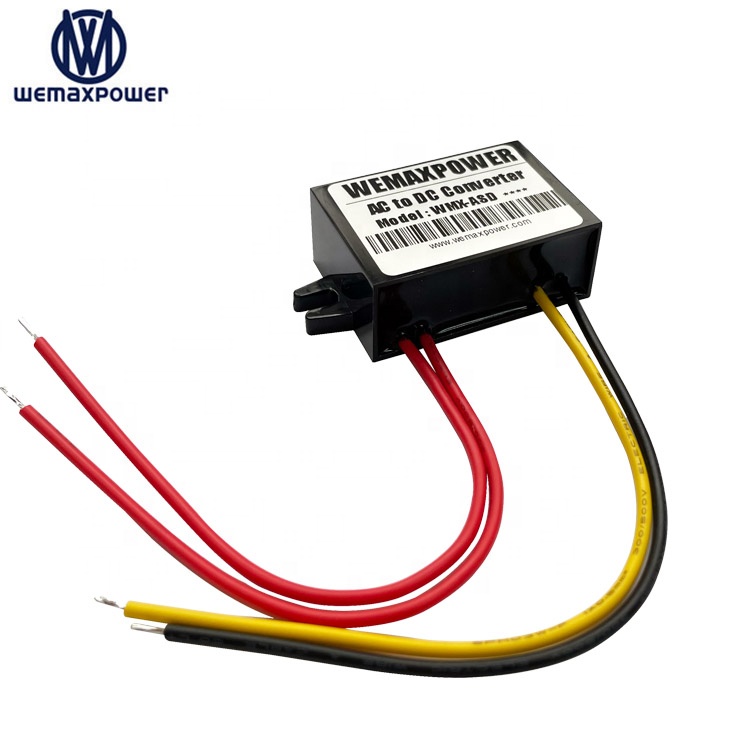

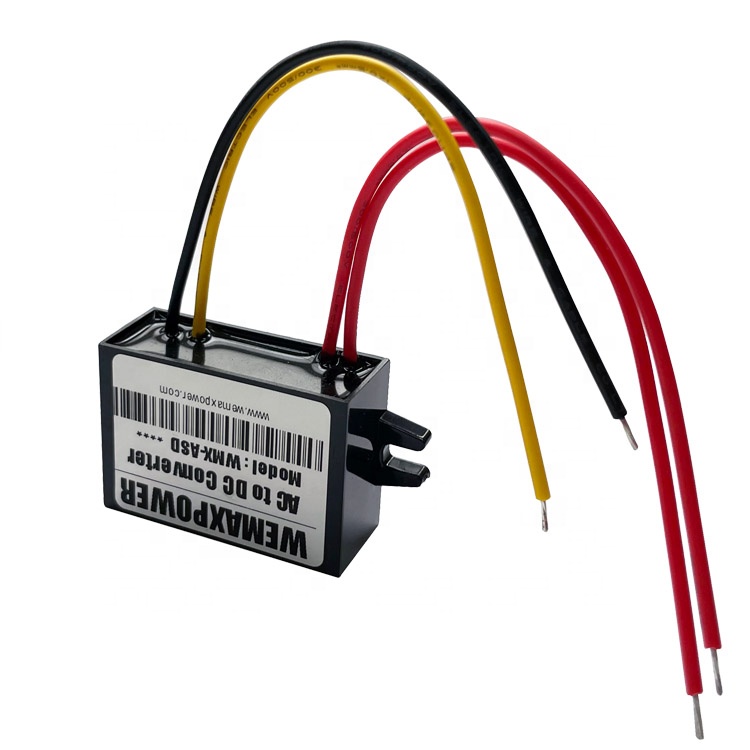

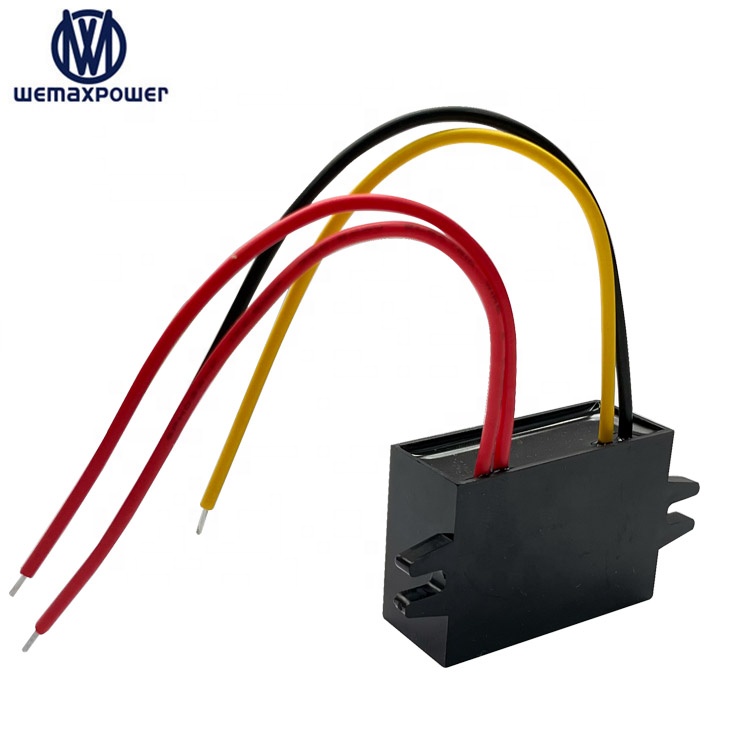

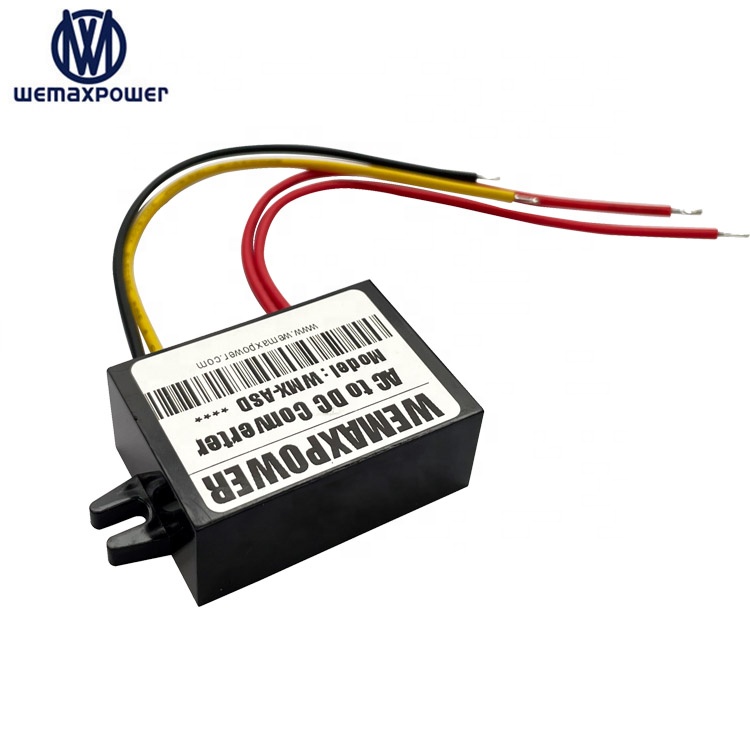

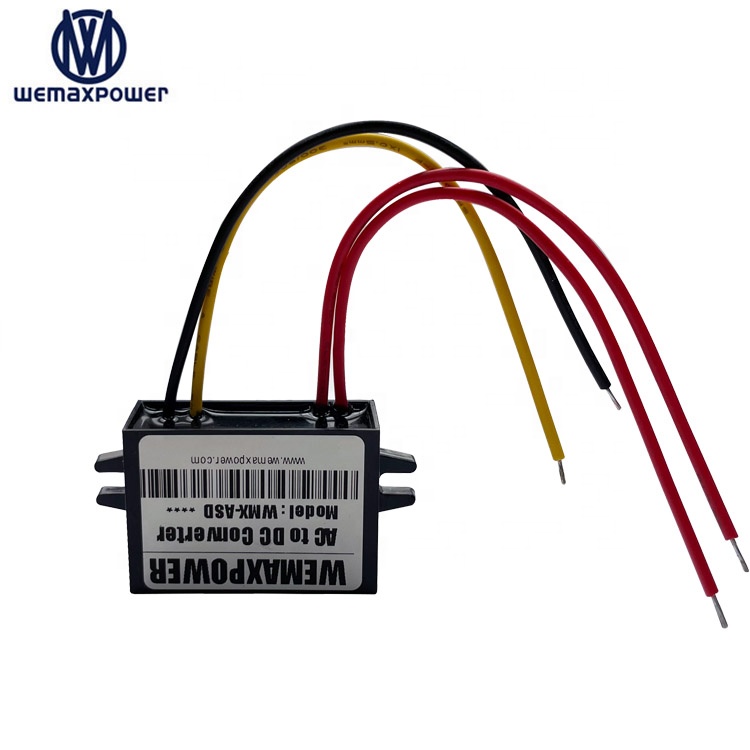

24VAC to 12VDC AC-DC Converter
| Series No. | WMX-AD24D12 |
| Model No. | WMX-ASD24S1202 |
| Product Name | 24V to 12V AC-DC Converter |
| Input Rated Voltage | 24Vac |
| Input Voltage Range | 14-28Vac |
| Conversion Efficiency | 94% |
| Output Voltage | 12Vdc |
| Output Current | 2A |
| Output Rated Power | 24W |
| Voltage Regulation | < 1% |
| Load Regulation | < 2% |
| Ripple (Full Load Test) | < 150mV |
| No-load Current | < 20mA |
| Working Temperature | -40°c ~ +80°c |
| Waterproof Rating | IP67 |
| Protections | Reverse connection, Over-current, Over-temperature, Output short circuit |
| Machine Size | 46*32*18mm |
| N. Weight | 45g |
| Cooling Way | Free air convection |
| Other | Standard static bag packing |
Since 2009, our factory has provided various power solutions for different projects worldwide. Including DC to DC, AC to DC, DC to AC, and AC to AC power supplies. We are committed to providing high-quality, high-performance, and cost-effective options to meet the power conversion needs of our customers.
DC-DC Converter, DC-DC Charger, Voltage regulator, Adjustable Power Supply, Power Inverter, Battery Charger, AC DC Converter, Switching Power Supply.
All our processes strictly adhere to ISO-9001 procedures. And we have a 12-month quality warranty against the delivery date. If the product does not work properly as described, and the problem is proven to be caused by our factory, we will provide exchange services for the same specific item. Also, our staff will always be there for you if anything is needed.
Yes, we can provide bespoke services to customers with specific requirements. You can send the detailed requirements, and we will check if we can develop them. We develop new models every month, and some of them may not yet be updated on our website. Or you can send us samples and we can develop the new models especially for you.
Different products have different MOQs. Generally speaking, our MOQ is 10pcs, please don't hesitate to check with us for specific items.
If we have stock of the item you need, we can send goods to you within 1-3 working days after receiving the deposit or 100% payment. If we don't have free stock, the delivery date can vary for different products. Generally speaking, it will take 1 to 4 weeks.
