Product Description

Waterproof 3A 24v to 12v ac dc converter 24vac step down 12vdc ac-dc converters for motor monitoring Printer Router

24v to 12v 3a ac-dc converter

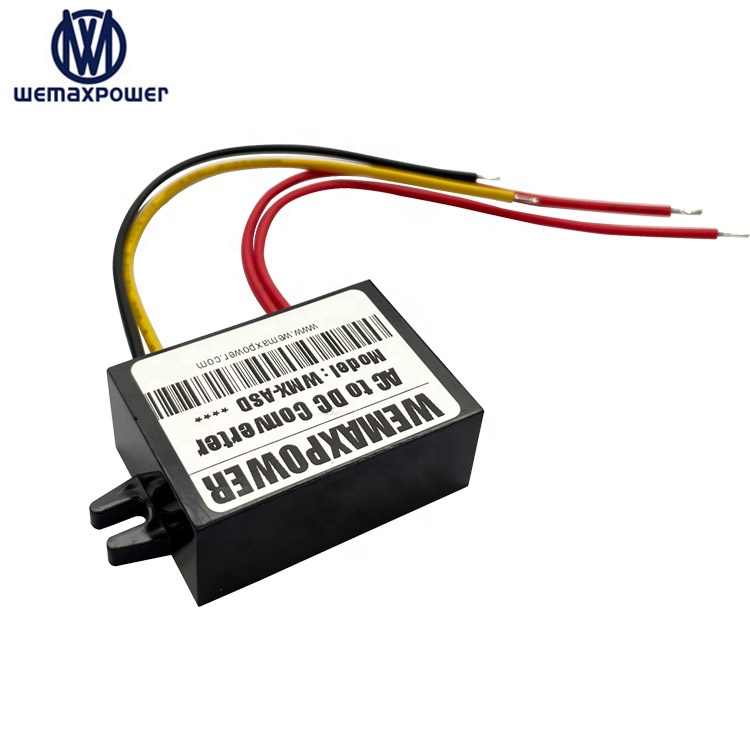

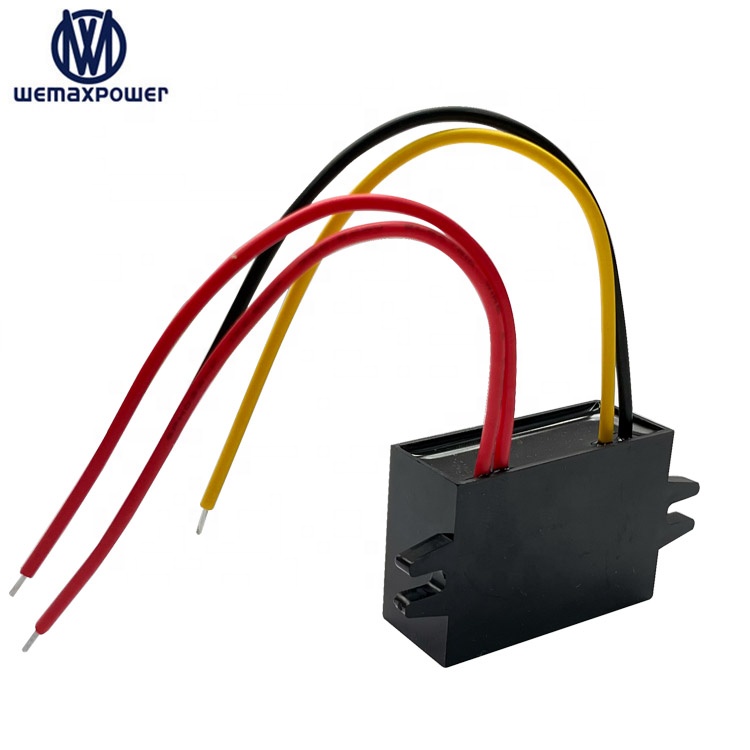

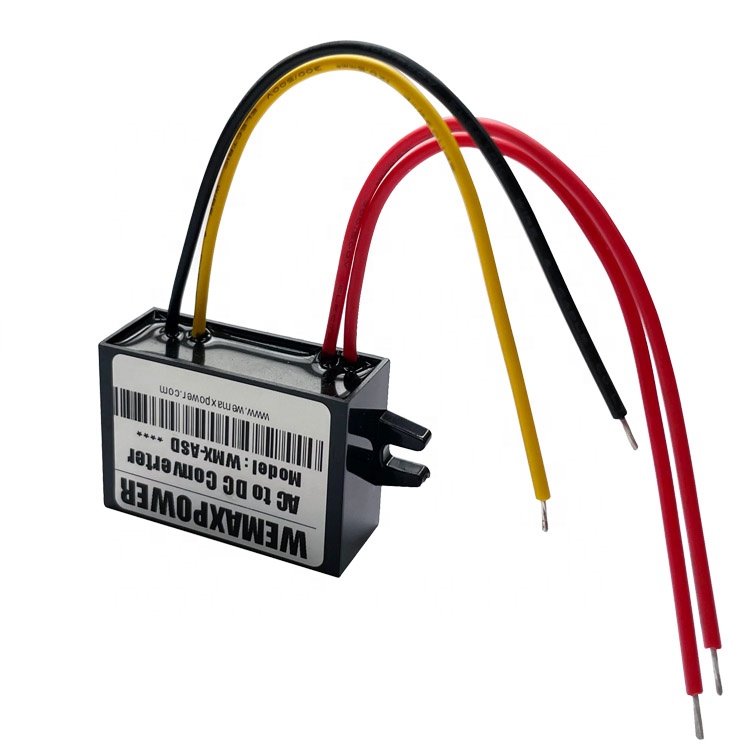

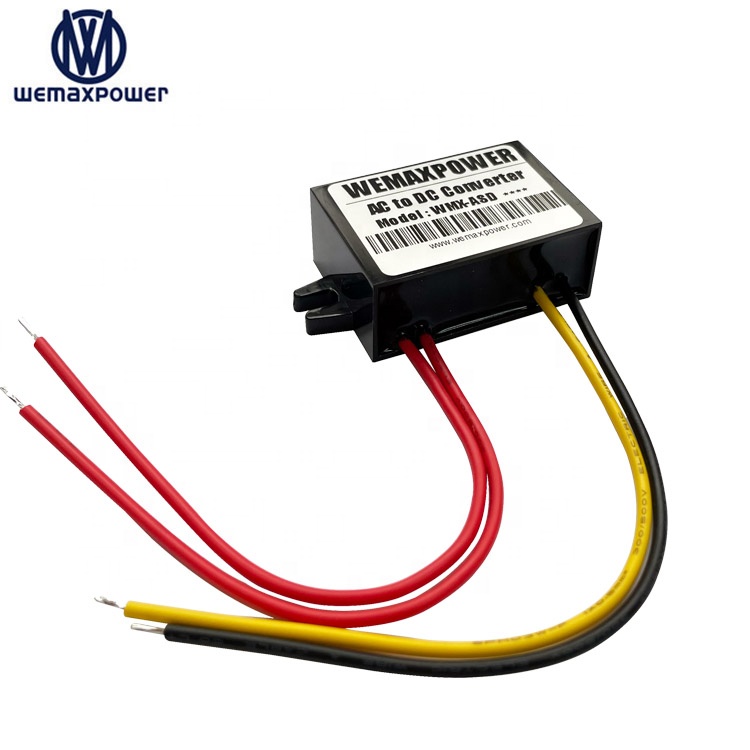

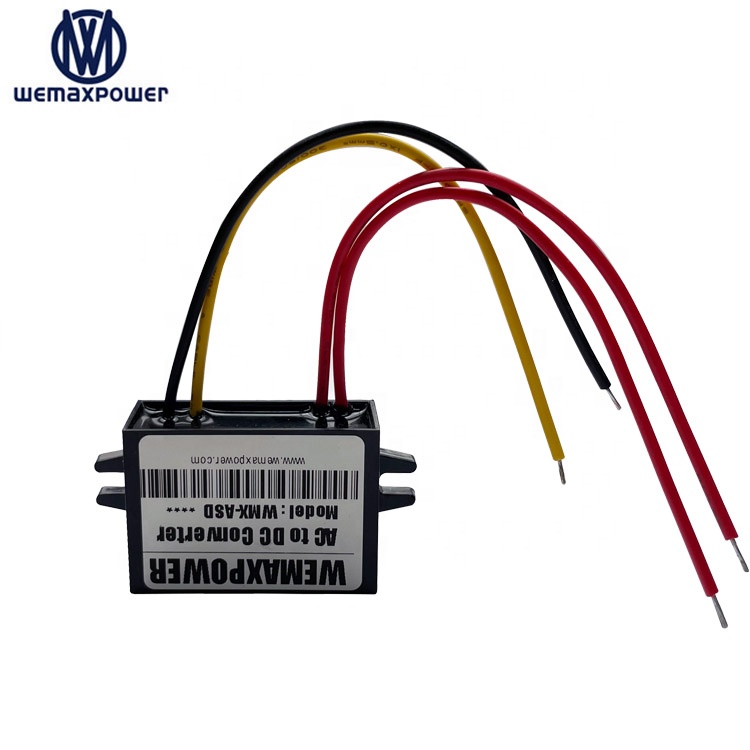

Waterproof 3A 24v to 12v Ac Dc Converter
  • High quality components.
  • Full power, stable voltage & current output.
  • Wide input voltage range.
  • Waterproof IP67 & anti-shock protection, ultra compact size, light weight.
  • Industry grade product, efficiency up to 93%.
  • Die-cast plastic shell, epoxy potting.
  • Non-Isolated Module.
Specifications
Series No. WMX-AD24D12
Model No. WMX-ASD24S1203
Product Name 24v to 12v ac-dc converter
Input rated voltage 24Vac
Input voltage range 14-28Vac
Conversion Efficiency 94%
Output voltage 12Vdc
Output current 3A
Output rated power 36W
Voltage regulation < 1%
Load regulation < 2%
Ripple (full load test) < 150mV
No-load current < 20mA
Working Temperature -40°c ~ +80°c
Waterproof rating IP67
Protections Reverse connection, Over-current, Over-temperature, Output short circuit
Machine size 46*32*18mm
N. Weight 45g
Cooling way Free air convection
Other Standard static bag packing
Product Details
Waterproof 24v to 12v Converter
Converter Dimensions
Connection Diagram Divider
Connection Diagram
Wiring Guide
Warning Divider
Installation Instructions
Technical Specifications Detail
Certificates Divider
Quality Certification
Factory Testing
