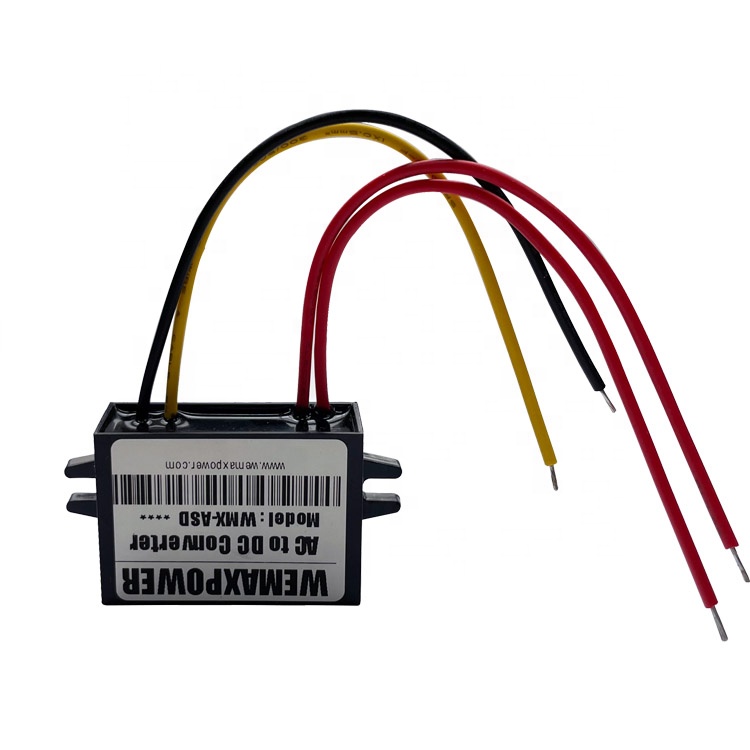

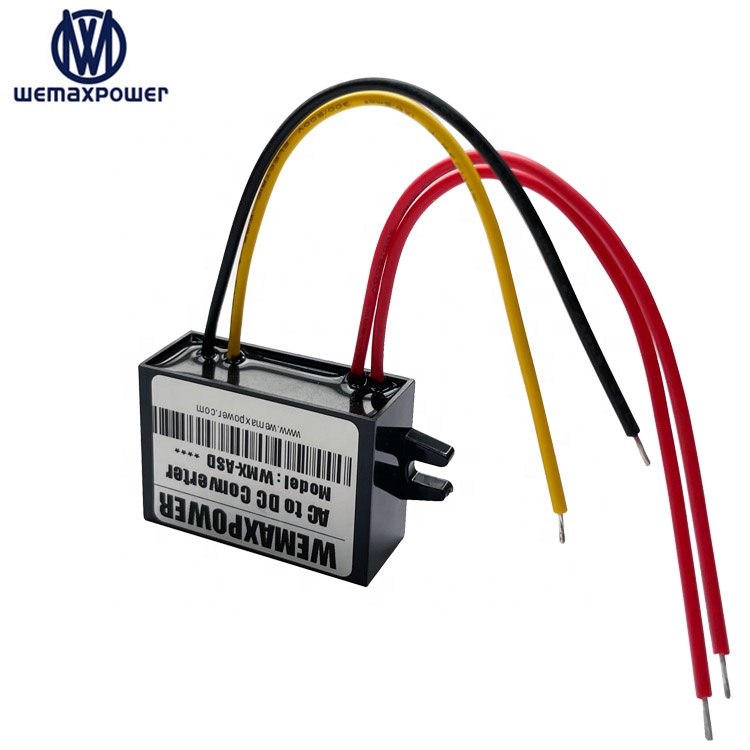

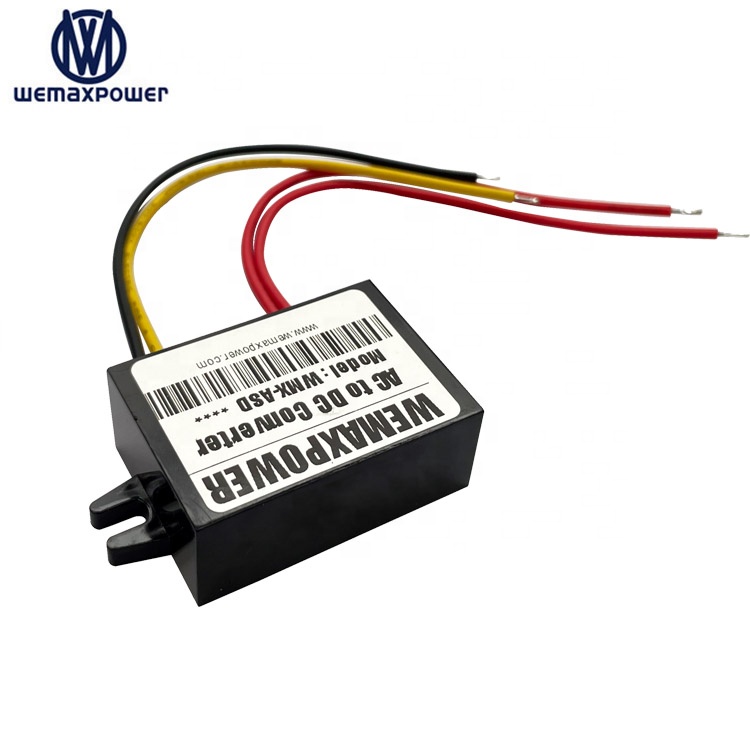

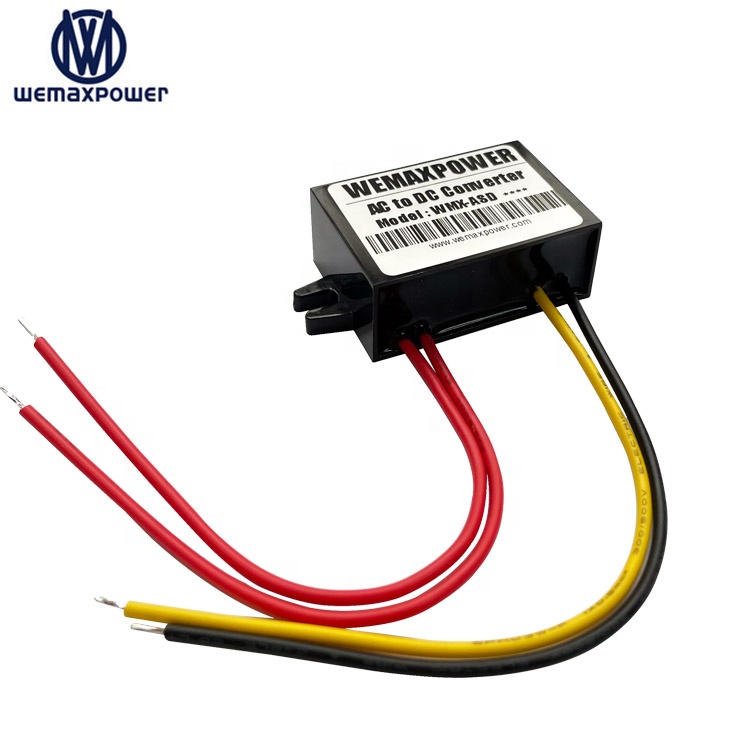

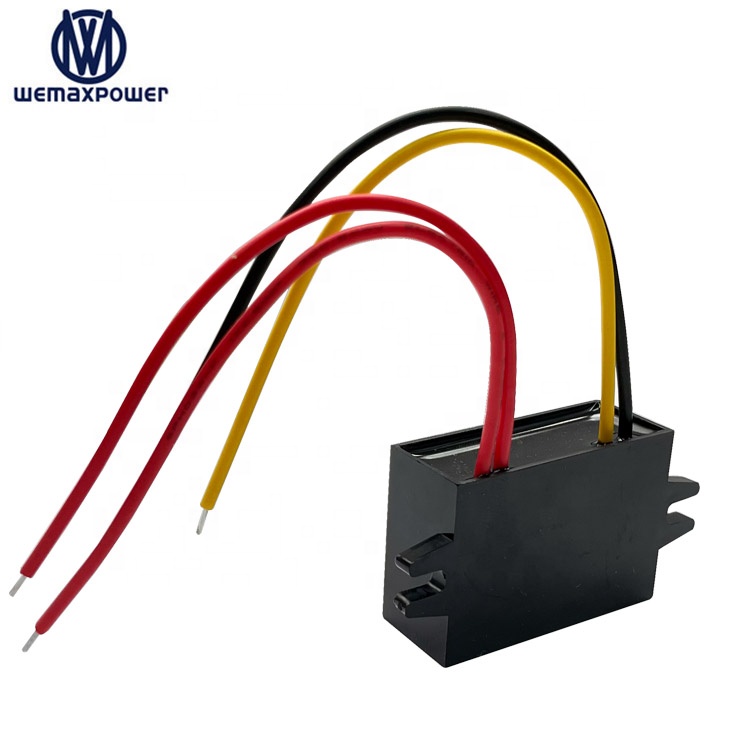

Waterproof 1A 24vac to 12vdc Ac-dc Converter Voltage Regulator 24v Ac Step Down 12v Dc for Security Monitoring Printer Router
Waterproof 1A 24vac to 12vdc Ac-dc Converter Voltage Regulator 24v Ac Step Down 12v Dc for Security Monitoring Printer Router
Waterproof 1A 24vac to 12vdc Ac-dc Converter Voltage Regulator 24v Ac Step Down 12v Dc for Security Monitoring Printer Router
Waterproof 1A 24vac to 12vdc Ac-dc Converter Voltage Regulator 24v Ac Step Down 12v Dc for Security Monitoring Printer Router
Waterproof 1A 24vac to 12vdc Ac-dc Converter Voltage Regulator 24v Ac Step Down 12v Dc for Security Monitoring Printer Router
1 / 5
Waterproof 1A 24vac to 12vdc Ac-dc Converter Voltage Regulator 24v Ac Step Down 12v Dc for Security Monitoring Printer Router
Waterproof 1A 24vac to 12vdc Ac-dc Converter Voltage Regulator 24v Ac Step Down 12v Dc for Security Monitoring Printer Router
Waterproof 1A 24vac to 12vdc Ac-dc Converter Voltage Regulator 24v Ac Step Down 12v Dc for Security Monitoring Printer Router
Waterproof 1A 24vac to 12vdc Ac-dc Converter Voltage Regulator 24v Ac Step Down 12v Dc for Security Monitoring Printer Router
Waterproof 1A 24vac to 12vdc Ac-dc Converter Voltage Regulator 24v Ac Step Down 12v Dc for Security Monitoring Printer Router

Waterproof 1A 24vac to 12vdc Ac-dc Converter Voltage Regulator 24v Ac Step Down 12v Dc for Security Monitoring Printer Router

Send Inquiry

Product Description

Waterproof 1A 24vac to 12vdc ac-dc converter voltage regulator 24v ac step down 12v dc for security monitoring Printer Router

24v to 12v 1a ac-dc converter
Waterproof 1A 24vac to 12vdc Ac-dc Converter Voltage Regulator 24v Ac Step Down 12v Dc for Security Monitoring Printer Router
  • High quality components.
  • Full power, stable voltage & current output.
  • Wide input voltage range.
  • Waterproof IP67 & anti-shock protection, ultra compact size, light weight.
  • Industry grade product, efficiency up to 93%.
  • Die-cast plastic shell, epoxy potting.
  • Non-Isolated Module.
Specifications Divider
Series No. WMX-AD24D12
Model No. WMX-ASD24S1201
Product Name 24v to 12v ac-dc converter
Input rated voltage 24Vac
Input voltage range 14-28Vac
Conversion Efficiency 94%
Output voltage 12Vdc
Output current 1A
Output rated power 12W
Voltage regulation < 1%
Load regulation < 2%
Ripple (full load test) < 150mV
No-load current < 20mA
Working Temperature -40°c ~ +80°c
Waterproof rating IP67
Protections Reverse connection, Over-current, Over-temperature, Output short circuit
Machine size 46*32*18mm
N. Weight 45g
Cooling way Free air convection
Other Standard static bag packing
Product Display Divider
Waterproof 1A 24vac to 12vdc Ac-dc Converter Overview
Voltage Regulator 24v Ac Step Down 12v Dc
Security Monitoring Printer Router Application
Detail Divider
Technical Specifications and Diagram
Section Divider
IP67 Waterproof Test
Internal components and materials
Detailed Diagram Divider
Wiring Instruction and Guidelines
Performance Graph Divider
Efficiency Curve and Heat Dissipation Details
FAQ Section Divider

Frequently Asked Questions

Q1. What kind of products and power solutions can you provide?
Since 2009, our factory has provided various power solutions including DC to DC, AC to DC, DC to AC, and AC to AC power supplies. You can buy DC-DC Converters, DC-DC Chargers, Voltage regulators, Adjustable Power Supplies, Power Inverters, Battery Chargers, AC DC Converters, and Switching Power Supplies.
Q2. How do you ensure product and service quality?
All our processes strictly adhere to ISO-9001 procedures. We provide a 12-month quality warranty against the delivery date. If the product does not work properly as described and the issue is proven to be caused by our factory, we will provide exchange services for the same item. Our staff is always here to support you.
Q3. Do you offer custom services based on specific requirements?
Yes, we can provide bespoke services to customers with specific requirements. You can send your detailed specifications, and we will check if we can develop them. We develop new models regularly, or you can send us samples for custom development.
Q4. How can I order and make payment?
Once we clarify your requirements and determine the ideal product for you, we will send a pro-forma invoice. You can pay via TT bank transfer, Western Union, or PayPal as preferred.
Q5. What is your Minimum Order Quantity (MOQ)?
Different products have different MOQs. Generally speaking, our standard MOQ is 10pcs. Please feel free to check with us for specific items.
Q6. What about delivery timelines and shipping options?
If we have stock, we can send goods within 1-3 working days after receiving payment. For non-stock items, delivery takes 1 to 4 weeks. We can ship in small batches by air express or larger ones by container. We utilize convenient maritime transportation options near major ports to optimize shipping.
