Waterproof Wide Input Isolation Step Down Dc Regulator 6a 120vdc 100vdc 90vdc 80v to 12v Isolated Converter

Similar Products

✔ Light weight, small size, easy install
✔ Supports wide range voltage input
✔ Imported industrial grade power chips
✔ Synchronous rectification technology with high conversion efficiency
✔ Sufficient power

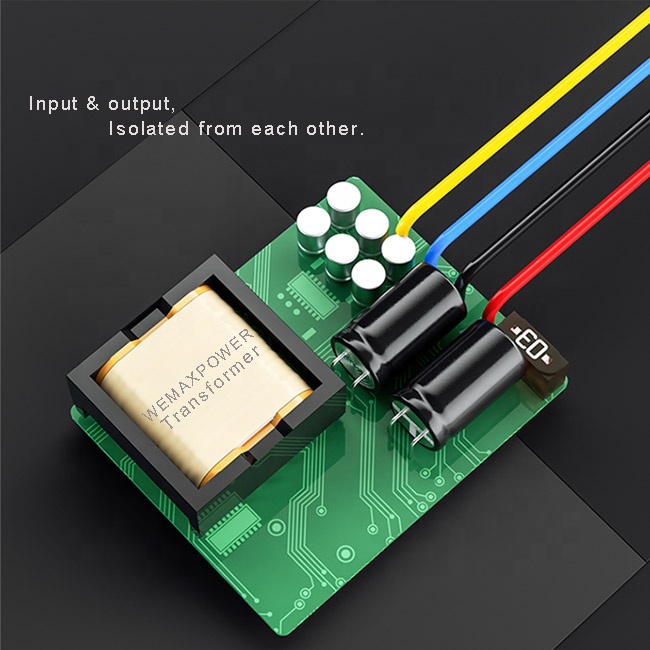

✔ Isolation transformer, isolation voltage: 1500VDC

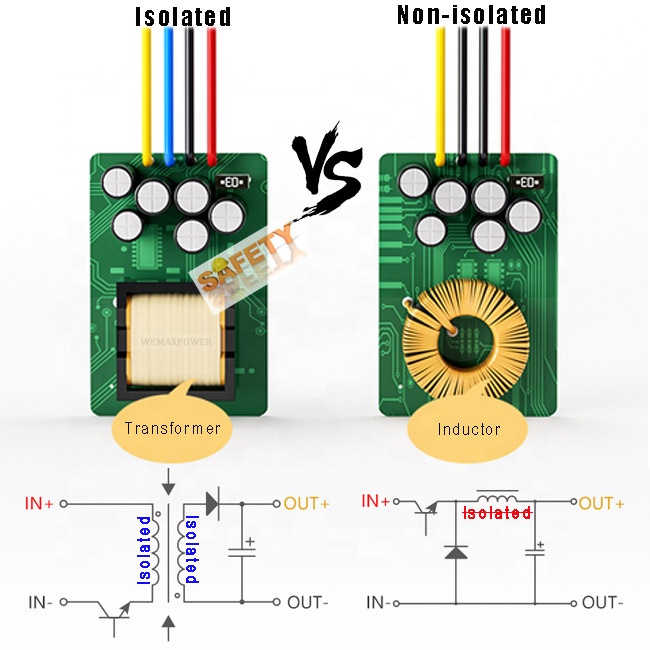

✔ Isolate power supply, isolate input and output from each other, refuse to burn out expensive load equipment, safe and reliable

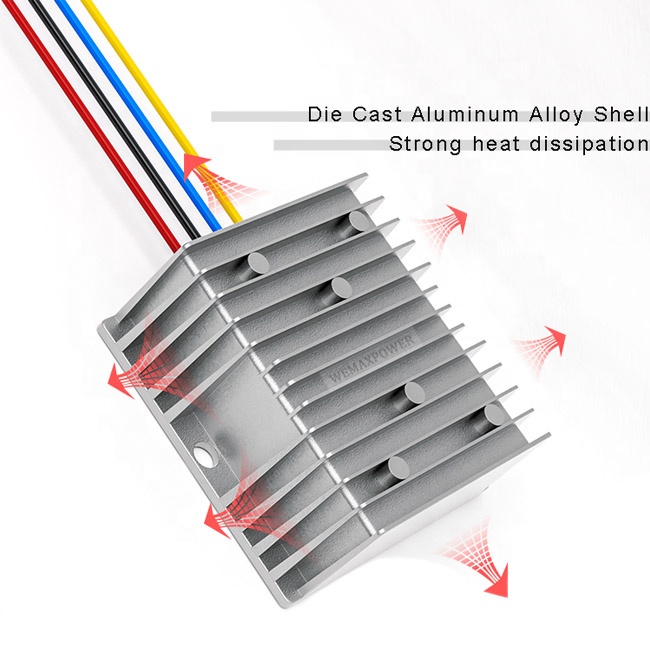

✔ ABS tough shell, flame retardant and explosion-proof, corrosion resistant, antioxidant, good insulation, fast heat dissipation

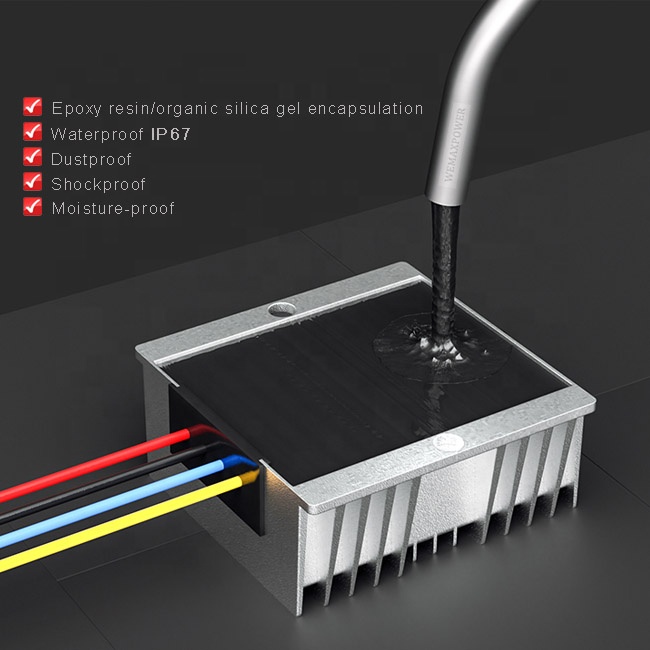

✔ Waterproof (IP67 waterproof grade), shockproof, moisture-proof, dustproof
✔ Adapt to ambient temperature -20~85 ° C
✔ Multiple protection functions. Over current, over voltage, over temperature protection, short circuit protection, strong anti-interference ability
✔ Widely used: various instrument fields such as intelligent robots, communication base stations, industrial control, power supply systems, onboard equipment, computer peripherals, digital products, etc

Series No.	WMX-D75-150D12
Model	WMX-DSD75-150S1206
Product Name	12v isolated dc converter
Input rated voltage	80vdc / 90vdc / 100Vdc
Input voltage range	75-150Vdc
Conversion Efficiency	96%
Output voltage	12Vdc
Output current	6Amps
Output rated power	72Watts
Voltage regulation	< 1%
Load regulation	< 2%
Ripple (full load test)	< 150mV
No-load current	< 20mA
Working Temperature	-40°c ~ +80°c
Waterproof rating	IP 67
Protections	Over-load, Over-current, Over-temperature, Over-voltage
Machine size	747432mm
N. Weight	290g
Type	Input output Isolation
Packing	White standard box

Product Description Detail

Buyer Feedback

Frequently Asked Questions

QWhy choose us?

We are a professional DC-DC converter manufacturer with more than 10 years of experience. The performance of the converters is highly stable, and the product technology is updated every year.

QIf the converter burns out, what will happen to the load?

Because the converter is isolated, once the converter is burnt out, the output voltage will become 0 V, which will not have any impact on the load and protects expensive load equipment from burning out.

QWhy are other products cheaper than yours?

Because other suppliers use cheaper components, their products may not deliver sufficient power output. Our products utilize premium imported components and support long-term, full-load operation.

QWhat about your after-sales service?

1. Guarantee time: 1 year
2. Return policy: we can exchange goods if there is any quality problem within the warranty period.

QWhat can you get from us?

1. Excellent products (unique design, strict quality control)
2. Great service (OEM, ODM, after-sales services, fast delivery)
3. Professional business consultation.

QWhat is the MOQ of the 12v isolated dc to dc converter?

Low MOQ, 2~5 units for sample testing is available.
