Product Description

Waterproof 15a 80v 90v 100v 120v to 12v dc voltage regulator 80vdc 100vdc step down 12vdc 15amp dc isolated converter

75~150v to 12v isolated dc converter

The input & output electrical appliances are completely isolated.
No high voltage direct output.
Positive and negative PSU can also be used.
Intelligent overload protection.
Prevent burning expensive load equipment.

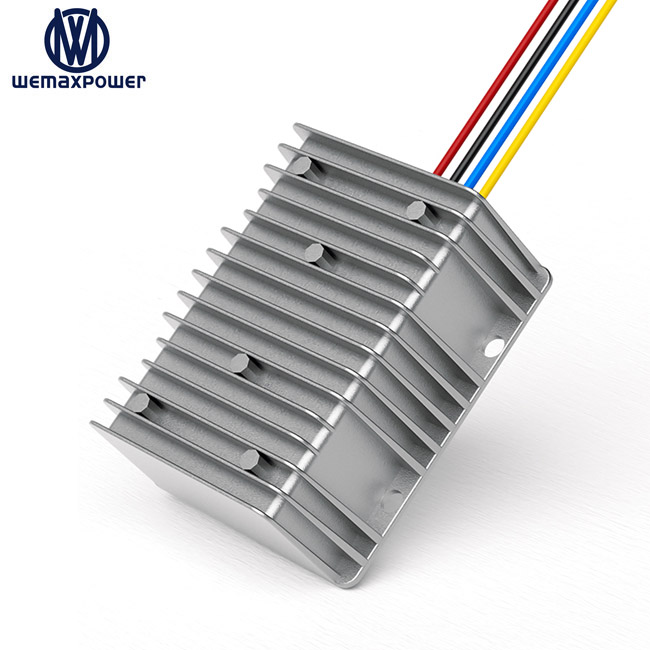

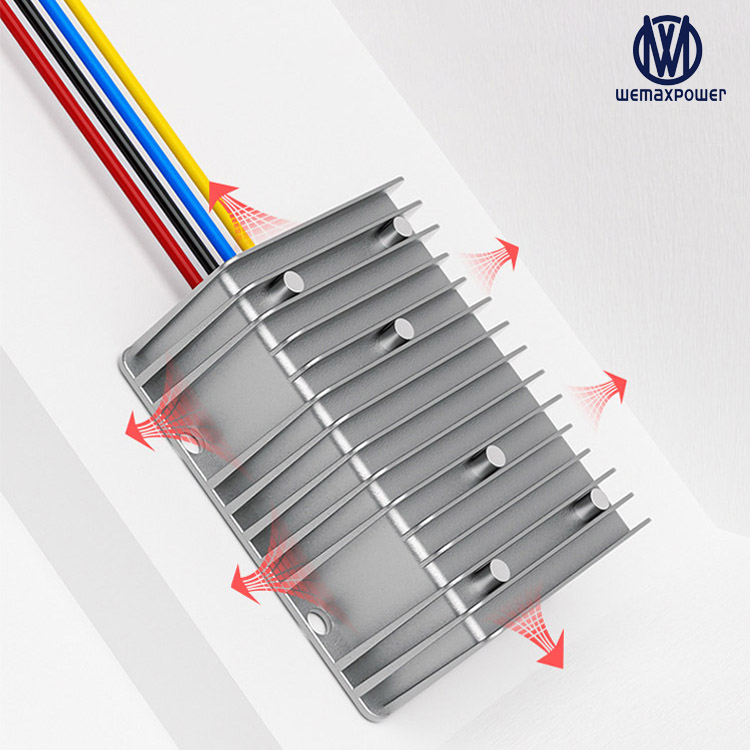

Die-cast plastic shell for more efficient heat dissipation.

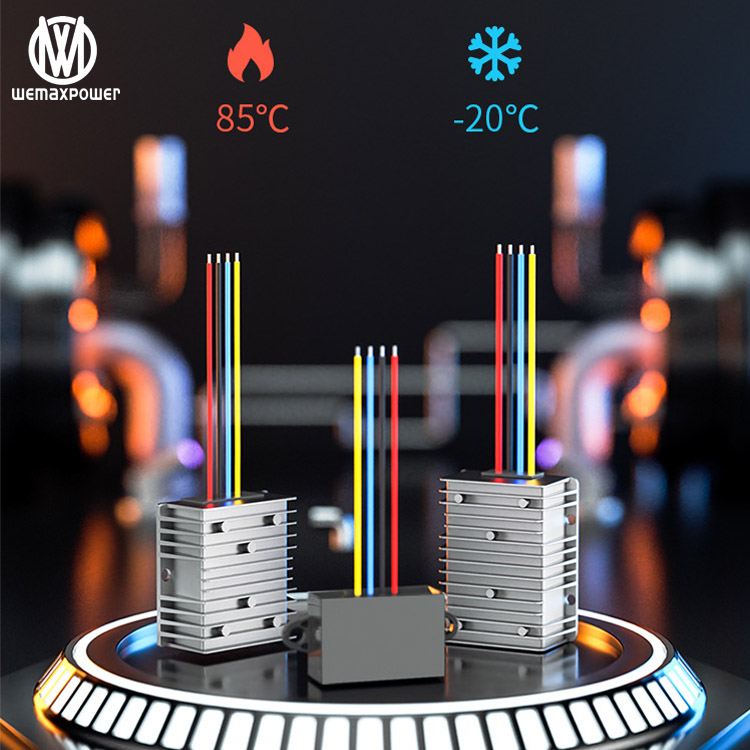

Suitable for ambient temperature -20~80°C.
Epoxy resin glue filling, IP67 protection grade, waterproof, anti shock, moisture-proof, dust-proof.

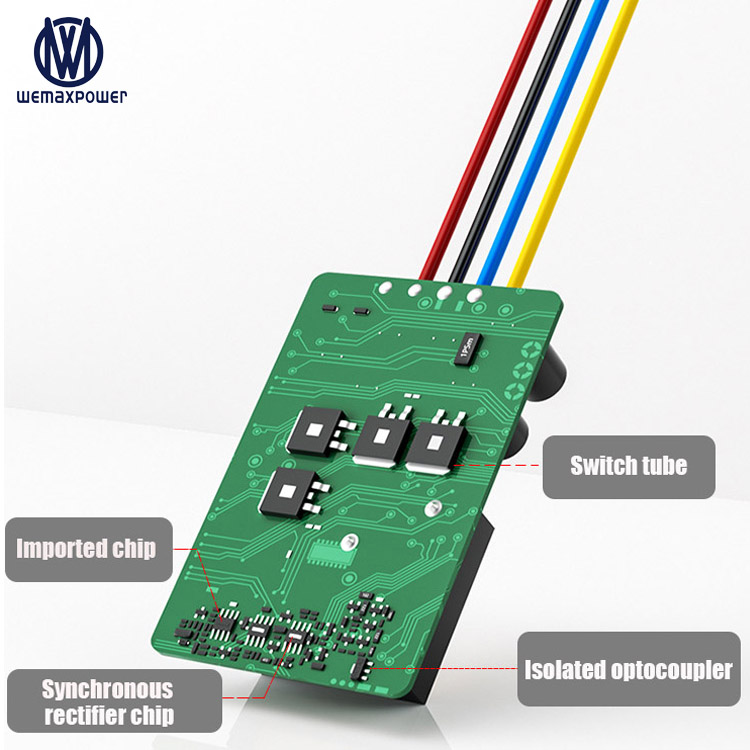

Industrial grade PSU chip, safe and reliable.

Series No.	WMX-D75-150D12
Model	WMX-DSD75-150S1215
Product Name	75-150v to 12v isolated converter
Input rated voltage	80/90/120Vdc
Input voltage range	75-150Vdc
Conversion Efficiency	96%
Output voltage	12Vdc
Output current	15Amps
Output rated power	180Watts
Voltage regulation	< 1%
Load regulation	< 2%
Ripple (full load test)	< 150mV
No-load current	< 20mA
Working Temperature	-40°c ~ +80°c
Waterproof rating	IP67
Protections	Over-load, Over-current, Over-temperature, Over-voltage
Machine size	1008039mm
N. Weight	490g
Type	Input & output Isolation
Packing	Standard box
