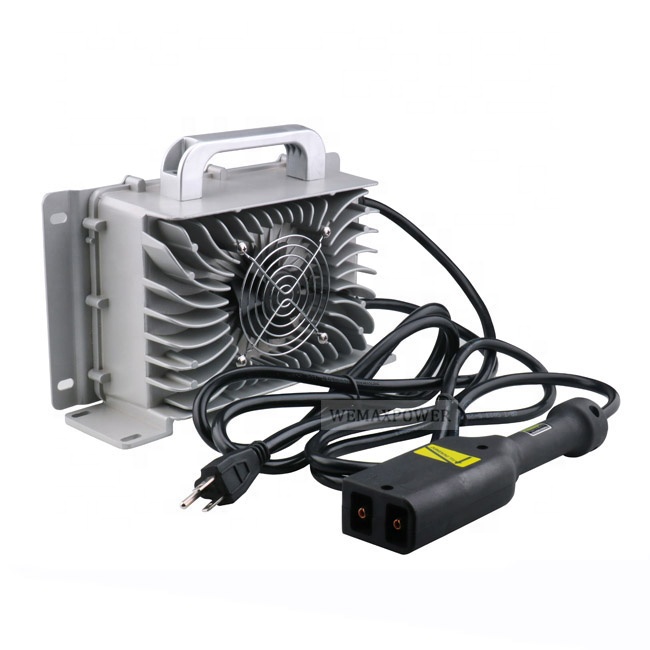

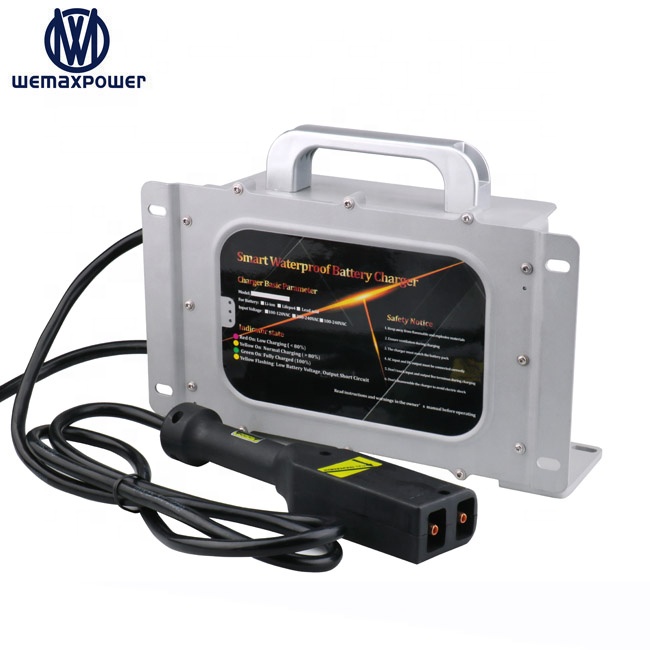

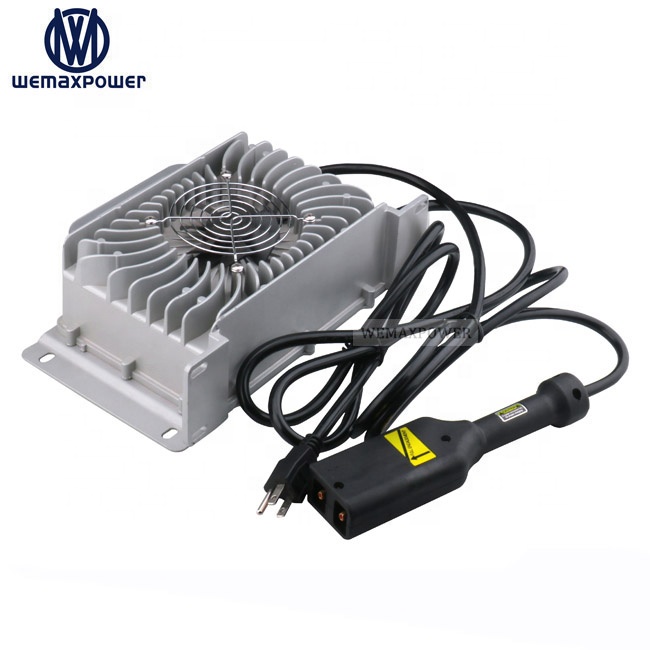

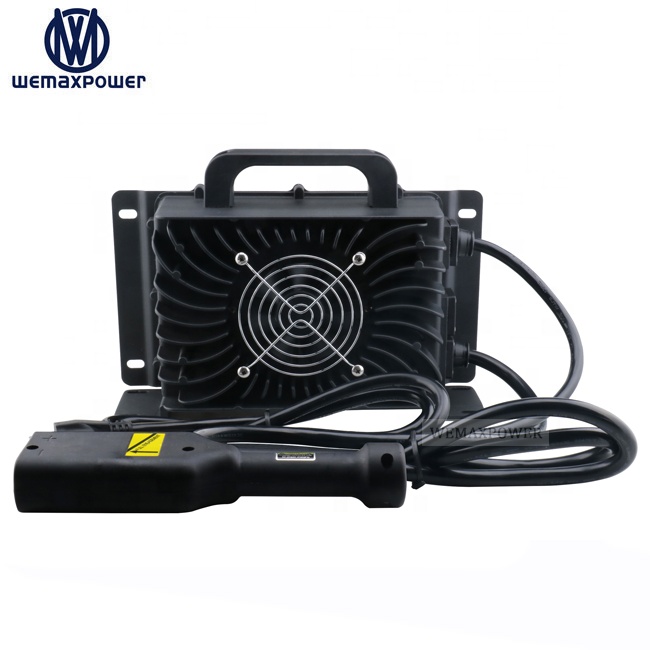

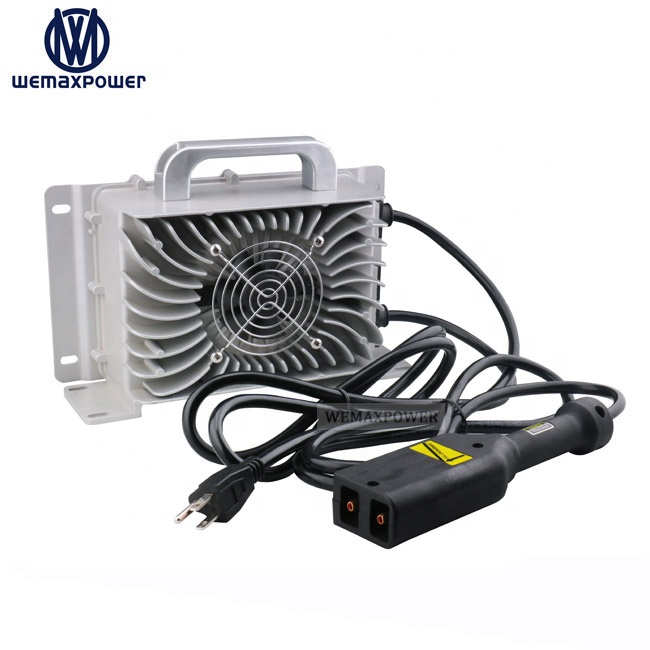

Golf cart battery charger 48v
-
✔
Waterproof Design: Highly resilient and suitable for various working conditions.
-
✔
Intelligent Controls: Full automatic transition of CC, CV, and Float/Cut-off with precise voltage & current limits.
-
✔
High Efficiency: ≥ 90% efficiency, offering high performance, stability, and durability.
-
✔
3-Stage Charging Mode: CC-CV-Floating transition for smart, safe charging with high saturation and lower heat generation.
-
✔
Multi-protection Functions: Comprehensive protection against short circuits, over-voltage, over-temperature, and reverse polarity.
-
✔
Premium Housing: Aluminum black and silver casing, lightweight, portable, and reliable.
| Model No. |
WMX-GC4820W
48--Output Voltage, 20--Output Current |
| Product name |
48v 20a golf cart battery charger |
| Input Voltage |
110V(100~130Vac) / 220V(200~240Vac), 50HZ/60HZ |
| Nominal Voltage |
48 VDC |
| Charging Current |
20 A |
| Housing |
Aluminum Alloy |
| Net Weight |
5.6 kg |
| Product dimension |
280*176*87mm |
| Lead acid Equal / Float voltage |
58.8V |
| LiFePO4 Charging voltage |
58.4V(16S) |
| Li-ion Charging voltage |
50.4V(12S), 54.6V(13S), 58.8V(14S) |
| Charging Principle |
Full automatic transition CC, CV and Float / Cut-off |
| Charging Time |
Cut-off point for Li battery is 5% of CC (settable between 3-10%). Transition for Lead acid charger is 20% of CC. |
| High-Efficiency |
≥90% |
| MTBF |
≥50000h |
| Operating Temperature |
-20℃~50℃ |
| Store Temperature |
-40℃~80℃ |
| Related humidity |
90%(40±2℃) |
| Protection Function |
Over voltage / Over temperature / Over current / Short circuit and Reverse polarity Protect |
| Indicators |
Red means power on / charging, Green means full charged |
| LCD display |
Charging voltage and current |
| AC Plug |
Accept any plug base on your request |
| Warranty |
12 months |
⚠
Warm Tip: Please let us know the plugs you need before confirming the order.
ℹ Note & Order Requirements
- What kind of battery do you need to charge? (Li-ion battery, LiFePO4 battery, or Lead Acid battery)
- What is the max charging voltage of the battery?
- What is the number of cells in series?
- What is the capacity (AH) of the battery pack?

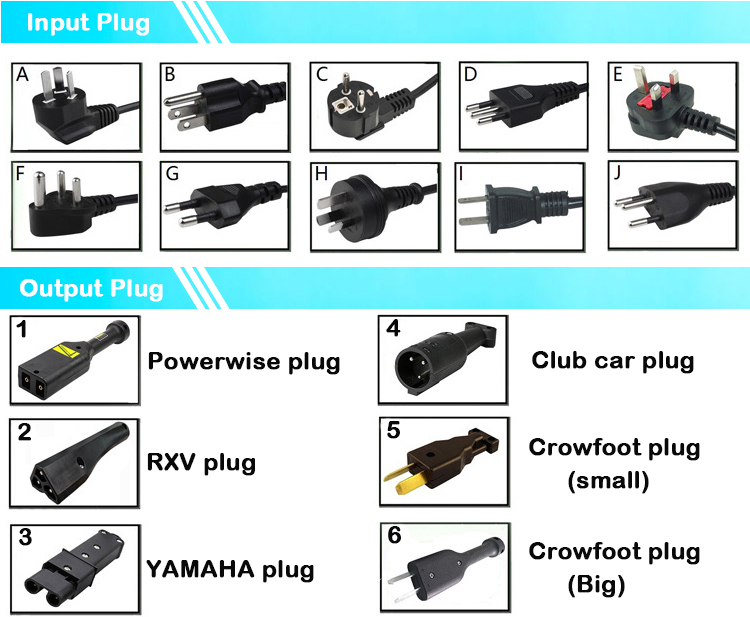

- What input plug and output plug do you need? (For Example: B & 1)
What types of batteries is this charger compatible with?
This 48V charger is compatible with Lead Acid, LiFePO4, and Lithium-ion (Li-ion) batteries. Please specify your battery type when ordering.
How does the 3-stage charging mode work?
The charger uses a CC (Constant Current), CV (Constant Voltage), and Float/Cut-off system. This maximizes charging speed and safety while reducing heat.
Does this golf cart battery charger have safety protection?
Yes, it features multi-protection functions including over-voltage, over-temperature, over-current, short circuit, and reverse polarity protections.
Can I choose specific input and output plugs?
Yes, we support various custom AC and DC plugs. Please confirm your plug type requirements (such as Club Car Powerwise, RXV, or Crowfoot) before purchasing.
How do the LED indicators show charging status?
The red indicator light signals that the unit is powered on or active charging, while the green indicator indicates a complete charge.
What is the default warranty period?
This waterproof 48v golf cart battery charger comes with a standard 12-month manufacturer warranty.
