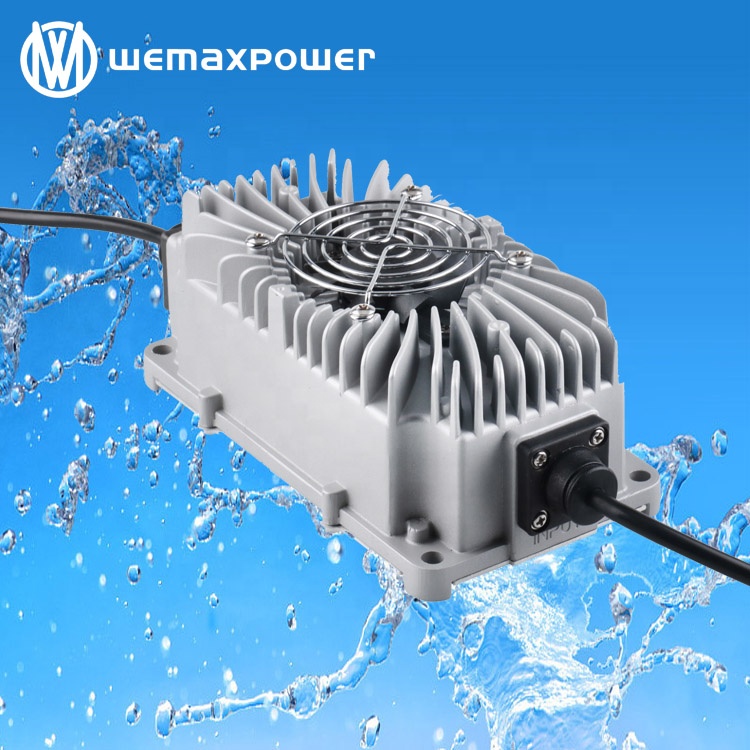

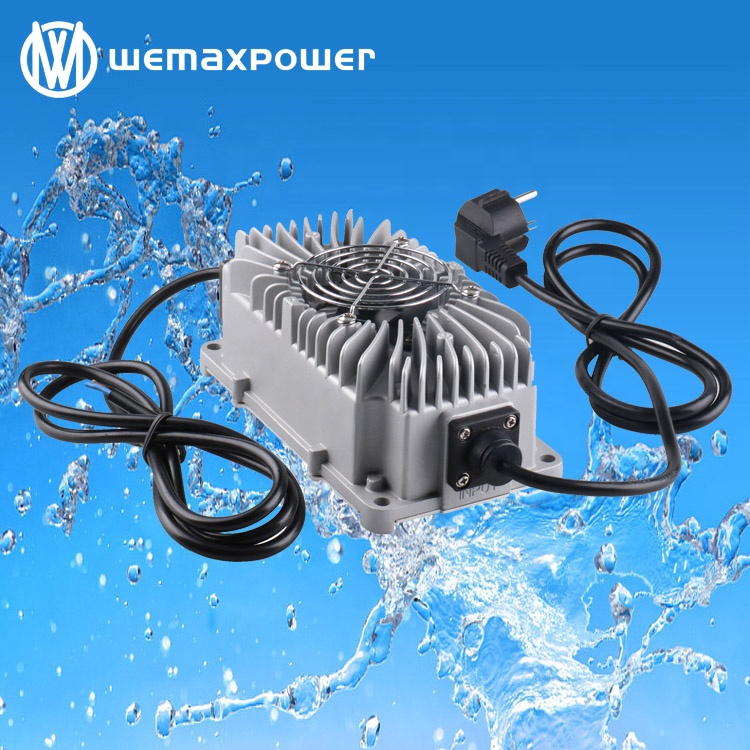

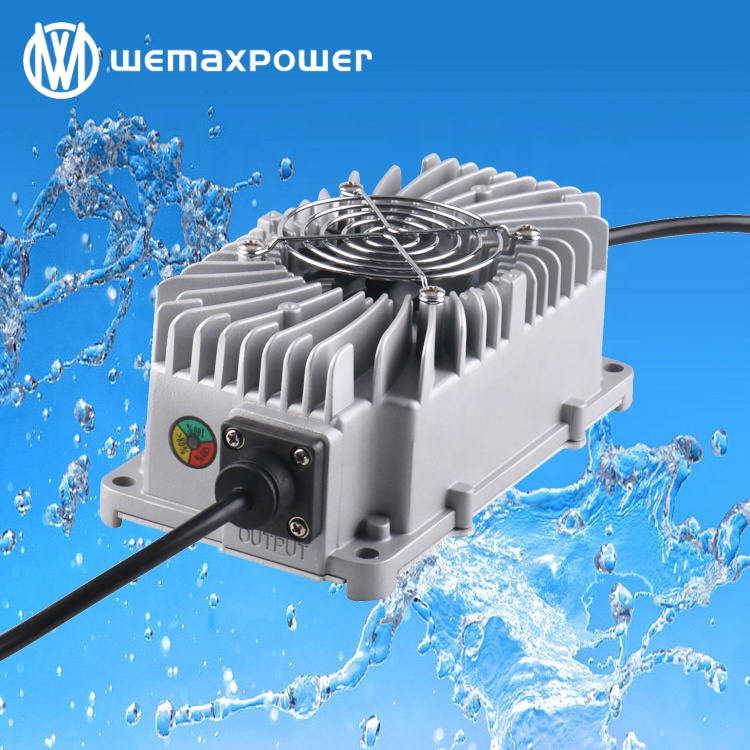

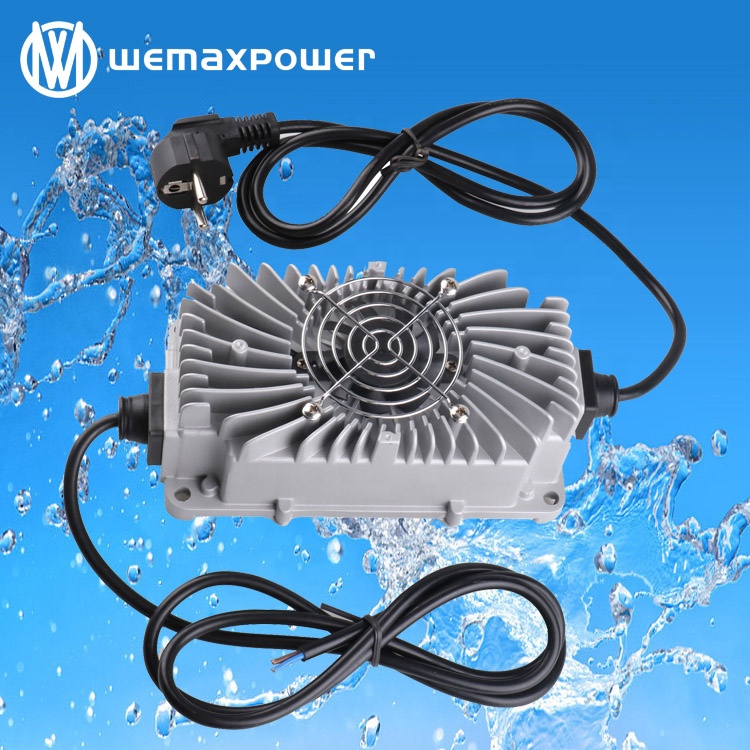

Waterproof 12V-72V Lead Acid Li-ion Lithium Intelligent Smart Portable Battery Charger CE Certified 1 Year Warranty

1 / 5

Waterproof 12V-72V Lead Acid Li-ion Lithium Intelligent Smart Portable Battery Charger CE Certified 1 Year Warranty

Send Inquiry

Product Description

Waterproof 12v 15a 24v 10a 36v 6a 48v 5a 60v 3.5a 72v 3a Lead Acid Li-ion Lithium Intelligent Smart Battery Charger

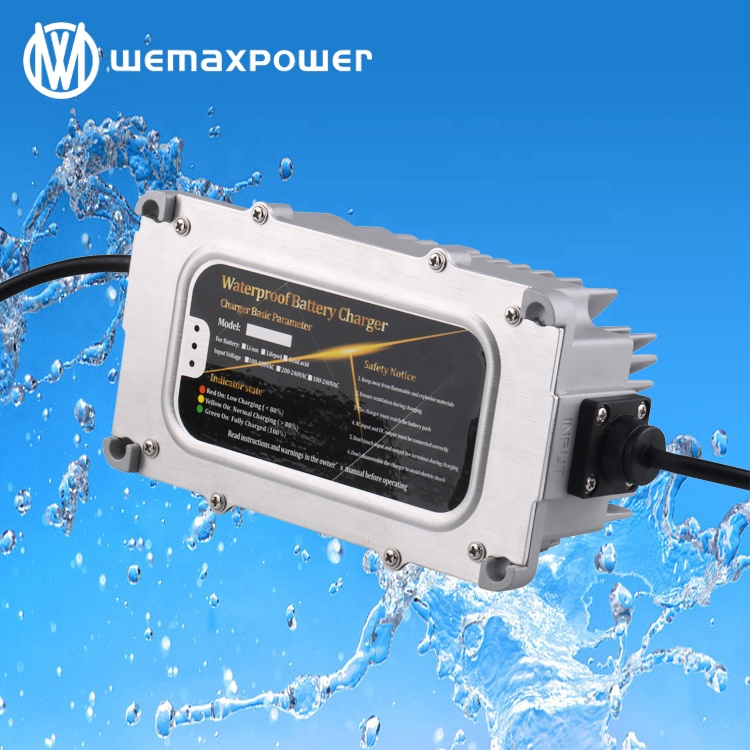

Waterproof Battery Charger

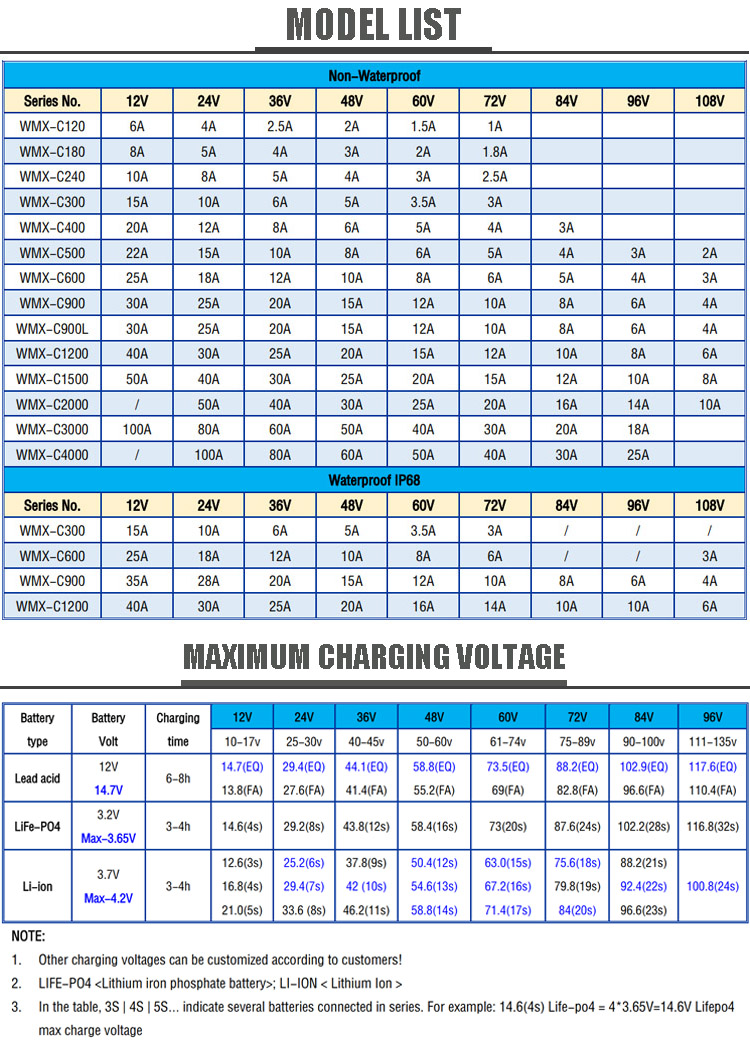

Series No.	WMX-C300
Model Definition	WMX-BC XX YY BC - Battery Charger, XX - Output Voltage, YY - Output (Max charge) current

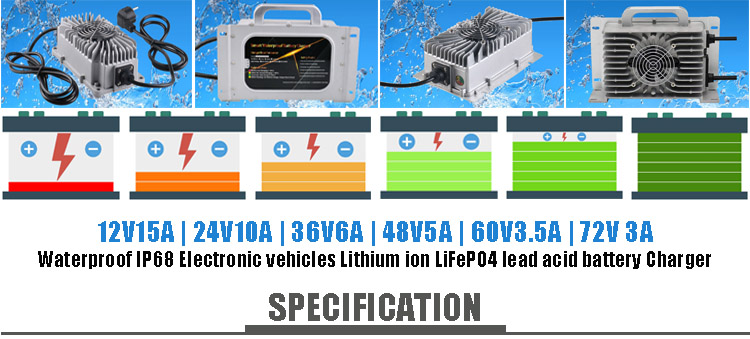

Product Name	12V15A \| 24V10A \| 36V6A \| 48V5A \| 60V3.5A \| 72V3A Waterproof IP68 Electronic vehicles Lithium ion LiFePO4 lead acid battery Charger
Model (WMX-BC)	BC1215	BC2410	BC3606	BC4805	BC603.5	BC7203
AC Input Voltage (Option)	1 Phase 100-130VAC, 50-60Hz. 1 Phase 200-240VAC, 50-60Hz.
Output Voltage	12V	24V	36V	48V	60V	72V
Output Current	15A	10A	6A	5A	3.5A	3A
Charging Current Selection	Lithium battery charge current = Battery capacity x 0.3C~2C. Lead acid battery charge current = Battery capacity x 0.12C~0.15C

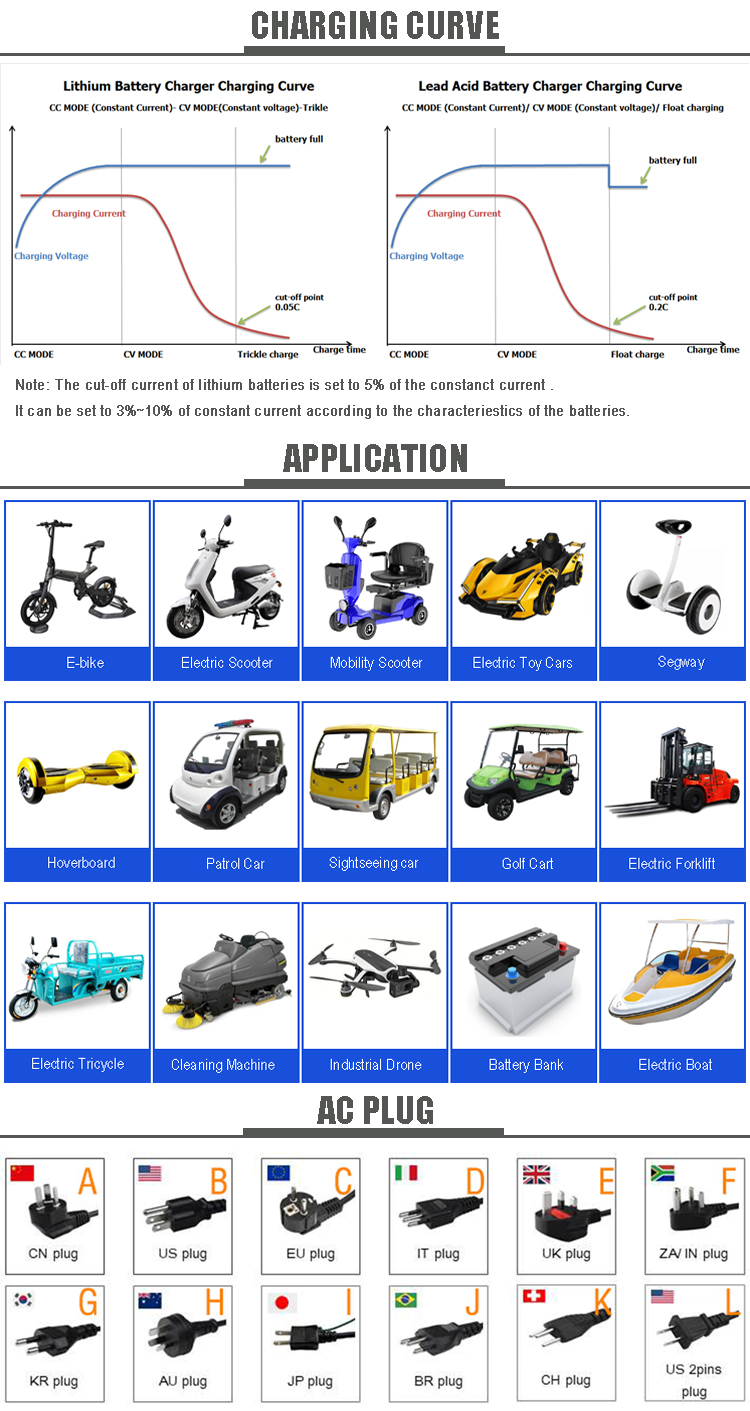

Charge Mode	C.C, C.V, Trickle \| Float
Waterproof	IP68
MTBF	MTBF > 20000 hours (25 Degrees Celsius, Full load and rated voltage input)
Conversion Efficiency	91%
Application	E-Bike, Electric Scooter, Mobility Scooter, Electric Toy Cars, Handicapped Scooter, Segway, Lime Electric Scooter, Electric Skateboard, Balancing Electric Scooter, Solo Wheel \| Balance Freeman, Unfolded Balance Scooter, Le Bar Cart, Electric Forklift, Power Tools, Portable Electric Device, Golf Cart, Electric Trolley
Protection	OVP \| OCP \| OTP \| SCP Over voltage \| Over current \| Over Temperature \| Short Circuit \| Reverse Polarity Protection
Operating Temperature	-15 ~ 40 Degrees Celsius
Storage Temperature	-40 ~ 70 Degrees Celsius
Humidity	5~95%
Altitude	0 ~ 3000m
Shell Material	Aluminum Shell

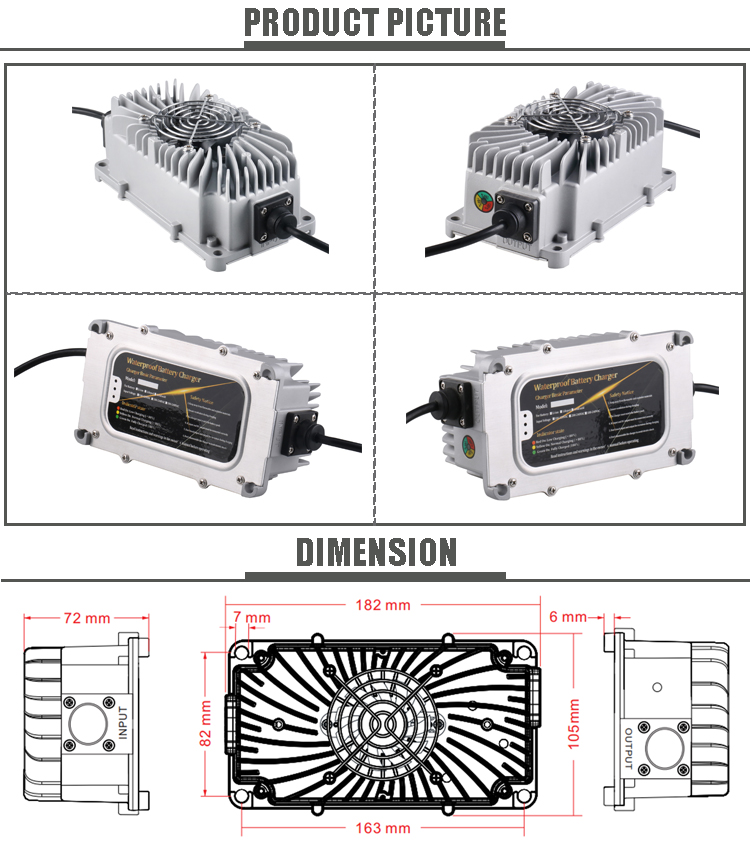

Dimension	182x105.6x73mm
N.W	1.7~1.9kg
AC Plug (Option)	CN \| US \| EU \| IT \| UK \| ZA \| IN \| KR \| AU \| JP \| BR \| CH...

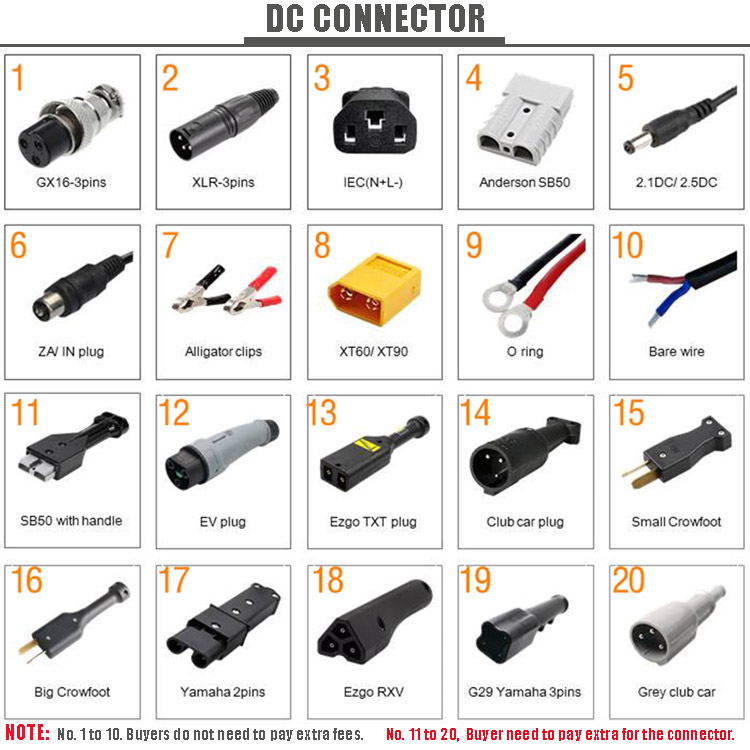

DC Plug (Option)	Aviation Plug (GX16-3pin) \| XLR-3PIN Plug \| IEC Plug \| Anderson \| DC Jack (5.5x2.1) \| RCA Plug \| Alligator Clips \| XT60 \| XT90 \| OT Circle Plug \| Bare wire
Golf Plug (Customized)	SB50 With Handle \| EV Plug \| Ezgo TXT Plug \| Club Car Plug \| Small Crowfoot \| Big Crowfoot \| Yamaha 2pins \| Ezgo RXV \| G29 Yamaha 3PINS \| Grey Club Car... (Reminder: If the charger requires a golf cart plug, please confirm before ordering, as additional costs may apply.)

Please confirm the following questions & leave notes in your order.

Otherwise we cannot arrange the production.

What is the input AC voltage you need, 100~130Vac or 200~240Vac?
Which mode would you like, 12V/15A, 24V/10A, 36V/6A, 48V/5A, 60V/3.5A, or 72V/3A?
What kind of battery needs to be charged? Li-ion battery, LiFePO4 battery, or Lead Acid battery?
What is the max charging voltage of the battery?
What is the input plug (A~L) & output connector (1~9)?

Your notes should be formatted like this:

1) 100~130Vac,
2) 12V 15A,
3) Li-ion battery,
4) 16.8V,
5) Plug B & Connector 10

Frequently Asked Questions (FAQ)

What types of batteries is this charger compatible with?

This intelligent charger is highly versatile and compatible with Lithium-ion (Li-ion), LiFePO4, and Lead-Acid batteries. Please make sure to specify your battery type when placing an order.

Is the charger suitable for outdoor or wet environments?

Yes, the charger is rated IP68 waterproof, meaning it offers complete protection against dust and water immersion. The durable aluminum shell also ensures optimal heat dissipation and protection in rugged conditions.

How do I choose the correct charging current?

As a general rule, the charging current for Lithium batteries should be set to: Battery capacity x 0.3C~2C. For Lead-Acid batteries, the recommended current is: Battery capacity x 0.12C~0.15C.

What built-in safety protections does this charger have?

The charger features comprehensive safety mechanisms including Over Voltage Protection (OVP), Over Current Protection (OCP), Over Temperature Protection (OTP), Short Circuit Protection (SCP), and Reverse Polarity Protection.

Can I request customized AC and DC plugs?

Absolutely. We offer a wide range of AC plugs (CN, US, EU, UK, AU, etc.) and DC connectors (Aviation, XLR, Anderson, Alligator Clips, XT60/XT90, OT Circle, etc.). Customized golf cart plugs are also available upon request.

What details are required to customize my order?

To align with your specific application, you need to confirm: 1) Required AC input voltage; 2) Desired voltage/current output mode; 3) Your battery chemistry type; 4) Maximum charging voltage; 5) Desired input plug and output connector types.

Product Detail

Waterproof 12V-72V Lead Acid Li-ion Lithium Intelligent Smart Portable Battery Charger CE Certified 1 Year Warranty

Product Description

Waterproof 12v 15a 24v 10a 36v 6a 48v 5a 60v 3.5a 72v 3a Lead Acid Li-ion Lithium Intelligent Smart Battery Charger

Waterproof Battery Charger

Related Products

Product Detail

Waterproof 12V-72V Lead Acid Li-ion Lithium Intelligent Smart Portable Battery Charger CE Certified 1 Year Warranty

Product Description

Waterproof 12v 15a 24v 10a 36v 6a 48v 5a 60v 3.5a 72v 3a Lead Acid Li-ion Lithium Intelligent Smart Battery Charger

Waterproof Battery Charger

Related Products

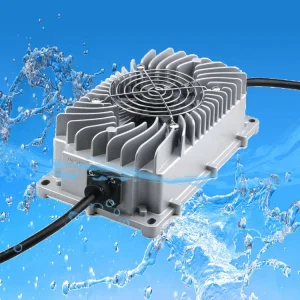

Waterproof 12v 25a 24v 18a 36v 12a 48v 10a 60v 8a 72v 6a Lead Acid Li-ion LiFePO4 Intelligent Smart Battery Charger WEMAXPOWER

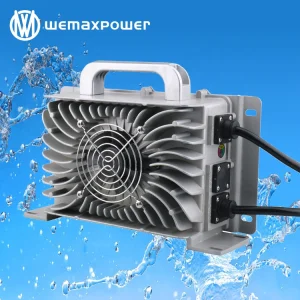

Waterproof 12v 40a 24v 30a 36v 25a 48v 20a 60v 16a 72v 14a Lead Acid Lithium Ion LiFe-PO4 Intelligent Smart Battery Charger

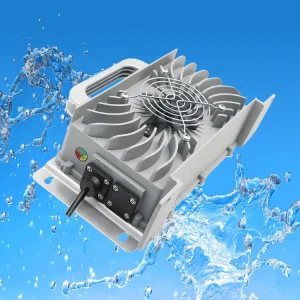

Waterproof 12v 35a 24v 28a 36v 20a 48v 15a 60v 12a 72v 10a Lead Acid Lithium Ion LiFe-PO4 Intelligent Smart Battery Charger

Waterproof Lead Acid LifePO4 84v 87.6v 88.2v 72vdc 3A Lithium Ion E Bike 72v Electric Scooter Battery Charger

Electric Scooter Bike Sightseeing 15ah 20ah 71.4v 63v 67.2v 73v 73.5v Lead Acid LifePO4 Lithium 3.5a Battery Charger 60v

Waterproof High Efficiency Used for Ship Boat 12vdc 15a Intelligent Battery Charger 12v

Waterproof Portable Boat Ship Electric Sweeper Electric Bicycle Car Lead Acid LifePO4 Li-ion 48v 20a Battery Charger

Waterproof Ship Boat Use 12vdc 14.6v 14.7v 12.6v 16.8v Intelligent Smart 12v 40 Amp Battery Charger

Golf Cart E Rickshaw Bike Waterproof 50.4v 54.6v 58.4v 58.8v 15amp Lead Acid Lithium Ion Lifepo4 Battery Charger 48v 15a

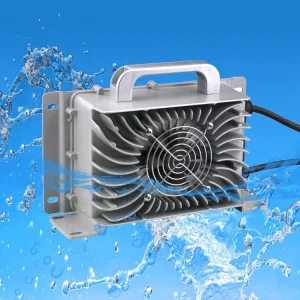

Boat Ship Waterproof Portable WEMAXPOWER WMX-BC2430W 25.2v 29.2v 29.4v 30amp Lead Acid LifePO4 Lithium Ion Battery Charger 24v
